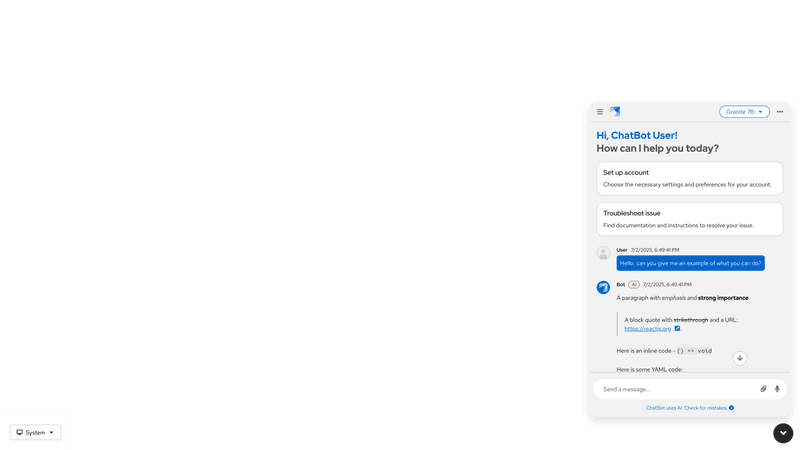

Basic ChatBot
This demo displays a basic ChatBot, which includes:
- The
<ChatbotToggle>
that controls the<Chatbot>
container. - A
<ChatbotHeader>
with all built sub-components laid out, including a<ChatbotHeaderTitle>
that changes its presentation depending on the display mode. - The ability to swap display modes via
<ChatbotHeaderOptionsDropdown>
<ChatbotContent>
and<MessageBox>
with:
- A
<ChatbotWelcomePrompt>
- An initial user
<Message>
and an initial bot message with message actions. - Logic for enabling auto-scrolling to the most recent message whenever a new message is sent or received using a
scrollToBottomRef
- A
<ChatbotFooter>
with a<ChatbotFootNote>
and a<MessageBar>
that contains the abilities of:
- Speech to text.
- Sending a message to the ChatBot.
- Receiving a response from a backend AI tool with a loading message state.
A
<ChatbotConversationHistoryNav>
toggled open and closed by the<ChatbotHeaderMenu
> in the<ChatbotHeader>
.A "Skip to chatbot" button that allows you to skip to the chatbot content via the PatternFly skip to content component. To display this button you must tab into the main window.

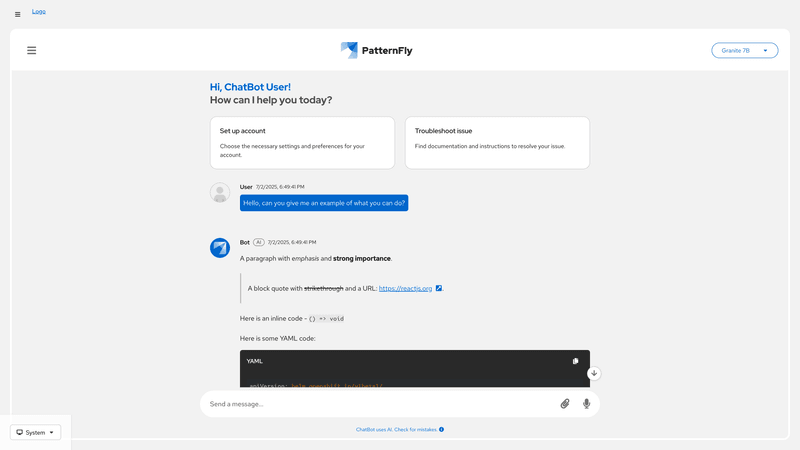

Embedded ChatBot
This demo displays an embedded ChatBot. Embedded ChatBots are meant to be placed within a page in your product. This demo includes:
- A PatternFly page with a sidebar, "Skip to chatbot" button, and masthead. To display the "Skip to chatbot" button you must tab into the main window.
- A
<Chatbot>
container. - A
<ChatbotHeader>
with all built sub-components laid out, including a<ChatbotHeaderTitle>
<ChatbotContent>
and<MessageBox>
with:- A
<ChatbotWelcomePrompt>
- An initial user
<Message>
and an initial bot message with message actions. - Logic for enabling auto-scrolling to the most recent message whenever a new message is sent or received using a
scrollToBottomRef
- A
- A
<ChatbotFooter>
with a<ChatbotFootNote>
and a<MessageBar>
that contains the abilities of:- Speech to text.
- Sending a message to the ChatBot.
- Receiving a response from a backend AI tool with a loading message state.
- A
<ChatbotConversationHistoryNav>
that can be toggled by the<ChatbotHeaderMenu
> in the<ChatbotHeader>
.

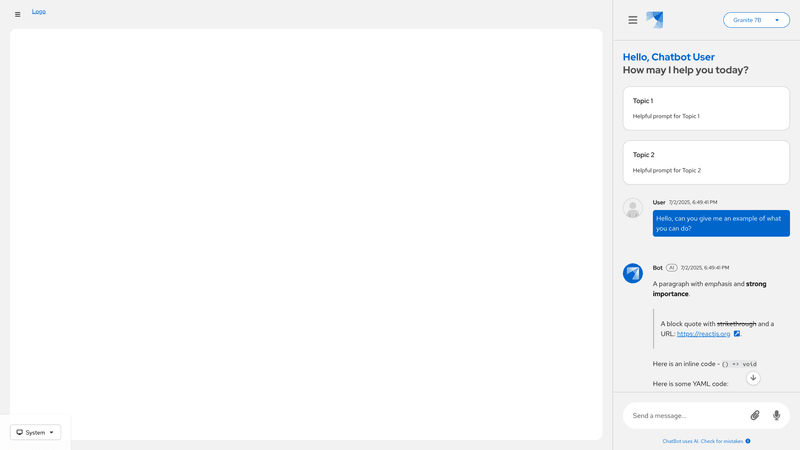

Inline drawer ChatBot
This demo displays a ChatBot in a static, inline drawer. This demo includes:
- An empty PatternFly page with a sidebar and masthead.
- A basic ChatBot, placed beside the page content. It does not overlay the page content, cannot be minimized, and does not allow you to change the display mode by default.
Note: The inline drawer ChatBot is built to fit and perform within a drawer, but the implementation of the drawer is up to you. This drawer can look different for each product, but will often be placed to the side of the page, inline with the page content.

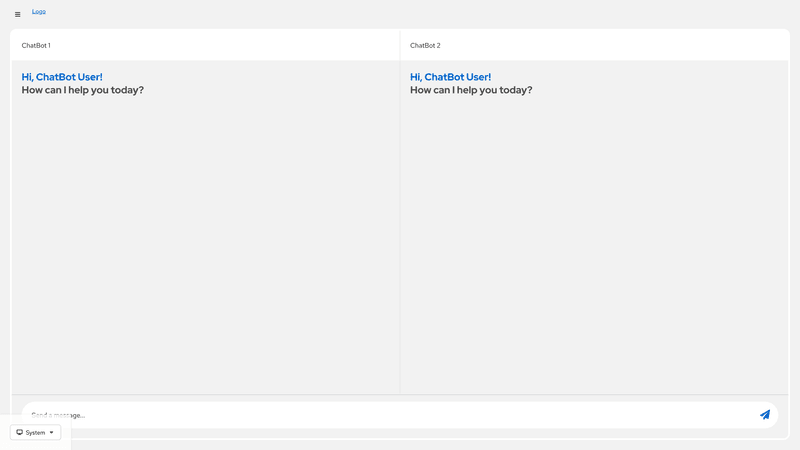

Comparing ChatBots
To let users compare how different ChatBots respond to the same prompt, you can add multiple ChatBots within the same window. The following demo illustrates a comparison view pattern that allows users to toggle between different conversations in a single ChatBot window.
Your code structure should look like this:
<Page ... >
<div className="pf-chatbot__compare-container">
<Compare ... />
<ChatbotFooter ... >
<MessageBar ... />
</ChatbotFooter>
</div>
</Page>
Props
Chatbot
Name | Type | Default | Description |
---|---|---|---|
childrenrequired | React.ReactNode | Content to be displayed in the chatbot | |
ariaLabel | string | Custom aria label applied to focusable container | |
className | string | Custom classname for the Chatbot component | |
displayMode | ChatbotDisplayMode | Display Mode for the Chatbot | |
innerRef | React.Ref<HTMLDivElement> | Ref applied to chatbot | |
isCompact | boolean | Density of information within the ChatBot | |
isVisible | boolean | Visibility flag for the chatbot |
ChatbotToggle
Name | Type | Default | Description |
---|---|---|---|
tooltipLabelrequired | React.ReactNode | Contents of the tooltip applied to the toggle button | |
className | string | Class name applied to toggle | |
closedToggleIcon | () => JSX.Element | An image displayed in the chatbot toggle when it is closed | |
innerRef | React.Ref<HTMLButtonElement> | Ref applied to toggle | |
isChatbotVisible | boolean | Flag indicating visibility of the chatbot appended to the toggle | |
isRound | boolean | Whether toggle is a circle | |
onToggleChatbot | () => void | Callback fired when toggle button is clicked | |
openIconTestId | string | Test id applied to default open icon | |
toggleButtonLabel | string | Accessible label for the toggle button | |
tooltipProps | Omit<TooltipProps, 'content'> | Props spread to the PF Tooltip component |
ChatbotContent
Name | Type | Default | Description |
---|---|---|---|
childrenrequired | React.ReactNode | Content to be displayed in the chatbot | |
className | string | Custom classname for the ChatbotContent component |
ChatbotWelcomePrompt
Name | Type | Default | Description |
---|---|---|---|
descriptionrequired | string | Welcome message | |
titlerequired | string | Title for the welcome message | |
className | string | Custom classname for the WelcomePrompt component | |
isCompact | boolean | false | |
prompts | WelcomePrompt[] | Custom basic prompts to help users coming for the first time to chatbot | |
testId | string | Custom test id for the WelcomePrompt component |
ChatbotFooter
Name | Type | Default | Description |
---|---|---|---|
children | React.ReactNode | Children for the Footer that supports MessageBar and FootNote components | |
className | string | Custom classname for the Footer component | |
isCompact | boolean |
MessageBar
Name | Type | Default | Description |
---|---|---|---|
onSendMessagerequired | (message: string | number) => void | Callback to get the value of input message by user | |
allowedFileTypes | Accept | Specifies the file types accepted by the attachment upload component. Files that don't match the accepted types will be disabled in the file picker. For example, allowedFileTypes: { 'application/json': ['.json'], 'text/plain': ['.txt'] } | |
alwayShowSendButton | boolean | Flag to always to show the send button. By default send button is shown when there is a message in the input field | |
attachMenuProps | MessageBarWithAttachMenuProps | Props to enable a menu that opens when the Attach button is clicked, instead of the attachment window | |
buttonProps | { attach?: { tooltipContent?: string; props?: ButtonProps; inputTestId?: string; tooltipProps?: Omit<TooltipProps, 'content'>; }; stop?: { tooltipContent?: string; props?: ButtonProps; tooltipProps?: Omit<TooltipProps, 'content'> }; send?: { tooltipContent?: string; props?: ButtonProps; tooltipProps?: Omit<TooltipProps, 'content'> }; microphone?: { tooltipContent?: { active?: string; inactive?: string }; language?: string; props?: ButtonProps; tooltipProps?: Omit<TooltipProps, 'content'>; }; } | Prop to allow passage of additional props to buttons | |
className | string | Class Name for the MessageBar component | |
displayMode | ChatbotDisplayMode | Display mode of chatbot, if you want to message bar to resize when the display mode changes | |
dropzoneProps | DropzoneOptions | Additional props passed to react-dropzone | |
handleAttach | (data: File[], event: DropEvent) => void | Callback function for when attach button is used to upload a file | |
handleStopButton | (event: React.MouseEvent<HTMLButtonElement>) => void | Callback function for when stop button is clicked | |
hasAttachButton | boolean | Flag to disable/enable the Attach button | |
hasMicrophoneButton | boolean | Flag to enable the Microphone button | |
hasStopButton | boolean | Flag to enable the Stop button, used for streaming content | |
innerRef | React.Ref<HTMLTextAreaElement> | Ref applied to message bar textarea, for use with focus or other custom behaviors | |
isAttachmentDisabled | boolean | Whether attachments are disabled | |
isCompact | boolean | Whether message bar is compact | |
isSendButtonDisabled | boolean | Flag to provide manual control over whether send button is disabled | |
listeningText | string | Placeholder text when listening | |
maxFiles | number | Max number of files allowed | |
maxSize | number | Max file size allowed | |
minSize | number | Minimum file size allowed | |
onAttach | <T extends File>(acceptedFiles: T[], fileRejections: FileRejection[], event: DropEvent) => void | Callback when file(s) are attached | |
onAttachRejected | (fileRejections: FileRejection[], event: DropEvent) => void | Callback function for AttachButton when an attachment fails | |
onChange | (event: React.ChangeEvent<HTMLTextAreaElement>, value: string | number) => void | A callback for when the text area value changes. | |
placeholder | string | Placeholder for message input | |
validator | <T extends File>(file: T) => FileError | readonly FileError[] | null | Validator for files; see https://react-dropzone.js.org/#!/Custom%20validation for more information |
ChatbotFootnote
Name | Type | Default | Description |
---|---|---|---|
labelrequired | string | Label to show for the footnote | |
className | string | Custom classname for the Footnote component | |
popover | ChatbotFootnotePopover | Config for the popover which opens up when footnote is clicked |
MessageBox
Name | Type | Default | Description |
---|---|---|---|
childrenrequired | ReactNode | Content to be displayed in the message box | |
announcement | string | Content that can be announced, such as a new message, for screen readers | |
ariaLabel | string | 'Scrollable message log' | Custom aria-label for scrollable portion of message box |
className | string | Custom classname for the MessageBox component | |
enableSmartScroll | boolean | false | Flag to enable automatic scrolling when new messages are added |
Deprecated: innerRef | React.Ref<HTMLDivElement> | innerRef has been deprecated. Use ref instead. Ref applied to message box | |
onScrollToBottomClick | () => void | Click handler for additional logic for when scroll to bottom jump button is clicked | |
onScrollToTopClick | () => void | Click handler for additional logic for when scroll to top jump button is clicked | |
position | 'top' | 'bottom' | 'top' | Modifier that controls how content in MessageBox is positioned within the container |
Message
Name | Type | Default | Description |
---|---|---|---|
avatarrequired | string | Avatar src for the user | |
rolerequired | 'user' | 'bot' | Role of the user sending the message | |
actions | { [key: string]: ActionProps; } | Props for message actions, such as feedback (positive or negative), copy button, share, and listen | |
additionalRehypePlugins | PluggableList | Additional rehype plugins passed from the consumer | |
attachments | MessageAttachment[] | Array of attachments attached to a message | |
avatarProps | Omit<AvatarProps, 'alt'> | Any additional props applied to the avatar, for additional customization | |
botWord | string | Label for the English word "AI," used to tag messages with role "bot" | |
cancelWord | string | Label for the English word "Cancel" used in edit mode. | |
codeBlockProps | { /** Aria label applied to code blocks */ 'aria-label'?: string; /** Class name applied to code blocks */ className?: string; /** Whether code blocks are expandable */ isExpandable?: boolean; /** Length of text initially shown in expandable code blocks; defaults to 10 characters */ maxLength?: number; /** Additional props passed to expandable section if isExpandable is applied */ expandableSectionProps?: Omit<ExpandableSectionProps, 'ref'>; /** Additional props passed to expandable toggle if isExpandable is applied */ expandableSectionToggleProps?: ExpandableSectionToggleProps; /** Link text applied to expandable toggle when expanded */ expandedText?: string; /** Link text applied to expandable toggle when collapsed */ collapsedText?: string; } | Props for code blocks | |
content | string | Message content | |
editFormProps | FormProps | Props for edit form | |
editPlaceholder | string | Placeholder for edit input | |
error | AlertProps | Optional inline error message that can be displayed in the message | |
extraContent | MessageExtraContent | Extra Message content | |
hasRoundAvatar | boolean | Whether avatar is round | |
id | string | Unique id for message | |
innerRef | Ref<HTMLDivElement> | Ref applied to message | |
isCompact | boolean | Sets message to compact styling. | |
isEditable | boolean | Whether message is in edit mode | |
isLiveRegion | boolean | Turns the container into a live region so that changes to content within the Message, such as appending a feedback card, are reliably announced to assistive technology. | |
isLoading | boolean | Set this to true if message is being loaded | |
linkProps | ButtonProps | Props for links | |
loadingWord | string | Label for the English "Loading message," displayed to screenreaders when loading a message | |
name | string | Name of the user | |
onEditCancel | (event: ReactMouseEvent<HTMLButtonElement, MouseEvent>) => void | Callback functionf or when edit cancel update button is clicked | |
onEditUpdate | (event: ReactMouseEvent<HTMLButtonElement, MouseEvent>) => void | Callback function for when edit mode update button is clicked | |
openLinkInNewTab | boolean | Whether to open links in message in new tab. | |
quickResponseContainerProps | Omit<LabelGroupProps, 'ref'> | Props for quick responses container | |
quickResponses | QuickResponse[] | Props for quick responses | |
quickStarts | { quickStart: QuickStart; onSelectQuickStart: (id?: string) => void; minuteWord?: string; minuteWordPlural?: string; prerequisiteWord?: string; prerequisiteWordPlural?: string; quickStartButtonAriaLabel?: string; className?: string; onClick?: () => void; action?: QuickstartAction; } | Props for QuickStart card | |
sources | SourcesCardProps | Sources for message | |
tableProps | Required<Pick<TableProps, 'aria-label'>> & TableProps | Props for table message. It is important to include a detailed aria-label that describes the purpose of the table. | |
timestamp | string | Timestamp for the message | |
updateWord | string | Label for the English word "Update" used in edit mode. | |
userFeedbackComplete | Omit<UserFeedbackCompleteProps, 'ref'> | Props for user feedback response | |
userFeedbackForm | Omit<UserFeedbackProps, 'ref'> | Props for user feedback card |
MessageBarWithAttachMenuProps
Name | Type | Default | Description |
---|---|---|---|
attachMenuItemsrequired | React.ReactNode | Items in menu | |
isAttachMenuOpenrequired | boolean | Flag to enable whether attach menu is open | |
onAttachMenuInputChangerequired | (value: string) => void | A callback for when the input value in the menu changes. | |
onAttachMenuToggleClickrequired | () => void | A callback for when the attachment menu toggle is clicked | |
setIsAttachMenuOpenrequired | (isOpen: boolean) => void | Callback to close attach menu | |
attachMenuInputPlaceholder | string | Placeholder for search input | |
onAttachMenuOnOpenChangeKeys | string[] | Keys that trigger onOpenChange, defaults to tab and escape. It is highly recommended to include Escape in the array, while Tab may be omitted if the menu contains non-menu items that are focusable. | |
onAttachMenuOpenChange | (isOpen: boolean) => void | Callback to change the open state of the menu. Triggered by clicking outside of the menu. | |
onAttachMenuSelect | (event?: React.MouseEvent<Element, MouseEvent>, value?: string | number) => void | Function callback called when user selects item in menu. |
CompareProps
Name | Type | Default | Description |
---|---|---|---|
firstChildrequired | React.ReactNode | First of two children to render | |
firstChildDisplayNamerequired | string | Display name for first child, used in mobile toggle | |
secondChildrequired | React.ReactNode | Second of two children to render | |
secondChildDisplayNamerequired | string | Display name for second child, used in mobile toggle | |
onToggleClick | (event: MouseEvent | React.MouseEvent<any, MouseEvent> | React.KeyboardEvent<Element>) => void | Callback for when mobile toggle is used | |
toggleGroupAriaLabel | string | Aria label for mobile toggle group |
