Date picker

A date picker allows users to either manually enter a date or select a date from a calendar.

Elements

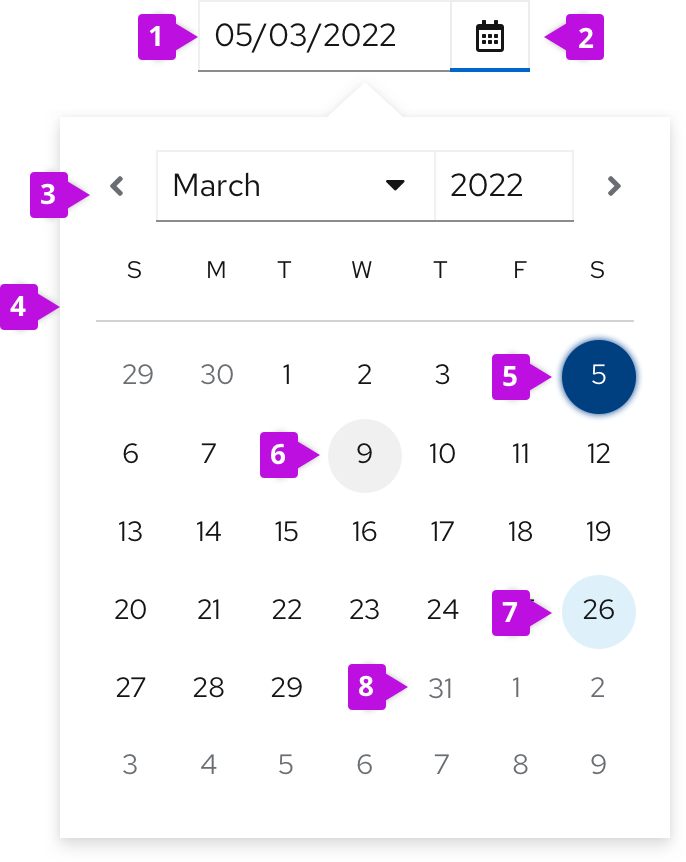

Date picker elements
  1. Date fields: Displays a user’s selected date. Always fill the date field with a placeholder date format (MM/DD/YYYY) or a pre-selected date before users make their selection via calendar or keyboard. The date field should never be empty.
  2. Calendar icon: Opens a calendar upon selection.
  3. Selection arrows: Allow users to navigate between months.
  4. Calendar: Allows users to select and navigate between days, months, years.
  5. Selected date
  6. Current date (today’s date): Indicates the day users access the calendar. Always highlighted.
  7. Hover state
  8. Disabled state

Usage

Use date pickers to enable users to select or input a date for use cases like item filtration or scheduling in a form.

Single date selection

A date picker allows users to select a single date. When a user enters a new date by date field input or calendar selection, the new date automatically replaces any placeholder or previously-selected value in the date input field.

For more guidance on writing date formats, see the content section.

Date range selection

Two date pickers can be used together to specify a date range. The first one functions as a start (“from”) date and the second one functions as an end (“to”) date. By default, when a user selects a start date, the end date will automatically display as the next calendar day.

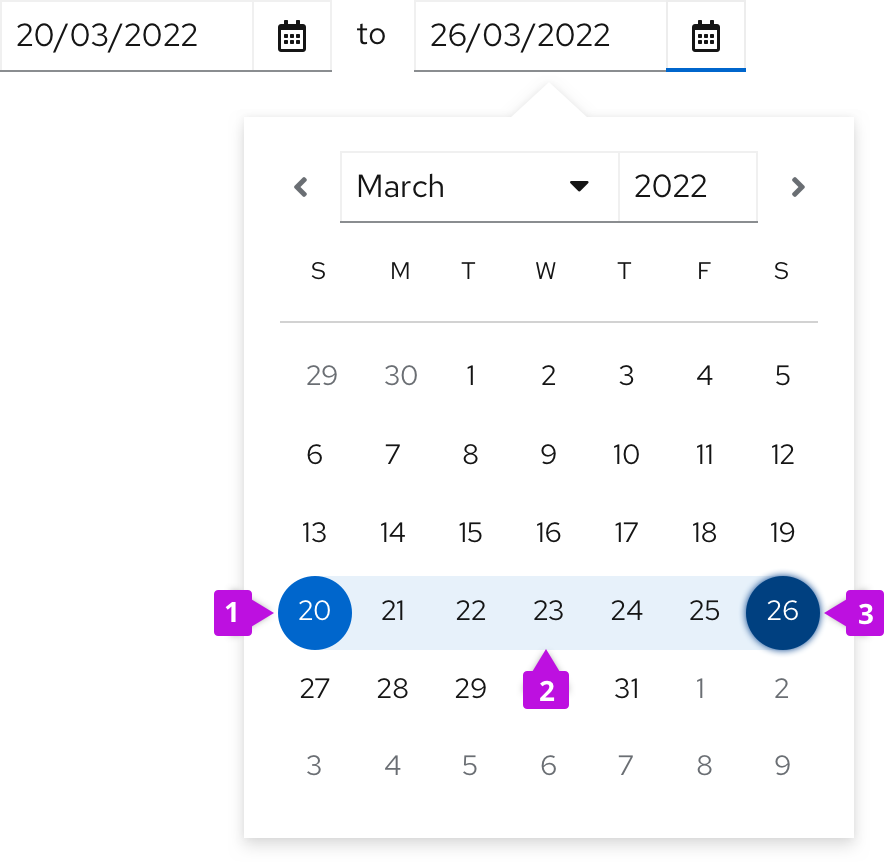

Date range selection - elements
  1. Selected start date
  2. Time range
  3. Selected end date

Date and time range selection

Combine a date picker and time picker when you want users to select a range of times across multiple days.

Behavior

When date pickers and time pickers are combined, each control’s behavior will remain the same. After users select the start date and time, the end date and time will be automatically set to the same hour of the next day.

Depending on your use case, time pickers and date pickers can be arranged in 2 ways: Horizontal alignment and vertical alignment (in this case labels are recommended).

Horizontal

Example of a horizontal date and time range selection

For horizontally arranged date and time pickers, connect each combined date and time picker with "to" so that users know which date defines which point of the date range. Always arrange each date and time picker in chronological order from left to right, with the start picker on the left and the end picker on the right.

Vertical

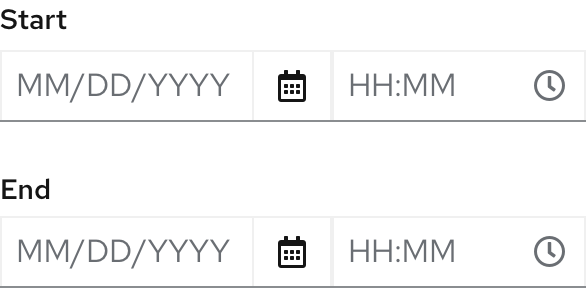

Example of a vertical date and time range selection with labels

For vertically arranged date and time pickers, always include field labels like "Starts" and "Ends" to indicate which picker corresponds to which point of the date range. Always arrange each date and time picker in chronological order from top to bottom, with the start picker on the top and the end picker below.

"All day" checkbox

Consider using adding an "All day" checkbox to a date and time picker to simplify user input when selecting specific dates, or selecting and entire day for an event. Checking the "All day" checkbox will disable the time field and include all hours of their selected dates into their inputs.

Example of a vertical date and time range selection with All day checkbox

Variations

Date picker in a toolbar

Use date pickers in a toolbar to filter by date ranges.

Date picker in attribute filter

Date range fields can be added to an attribute filter as an attribute. Selecting the Date range attribute will display a date picker, and push other content in the toolbar to the right - in this case, the CTA button. The date(s) selected should display as labels under the filter.

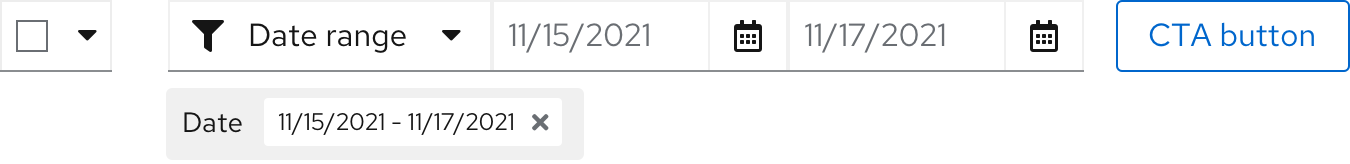

Example of date picker in toolbar attribute filter

Date picker filter group

Date pickers can be added to a toolbar as filters, placed next to other stand alone filters. Since horizontal space is limited in toolbar filter groups, use placeholder text to designate the range’s start and end dates.

For more guidance on using filter groups, see our toolbar design guidelines.

Example of date picker in toolbar filter group

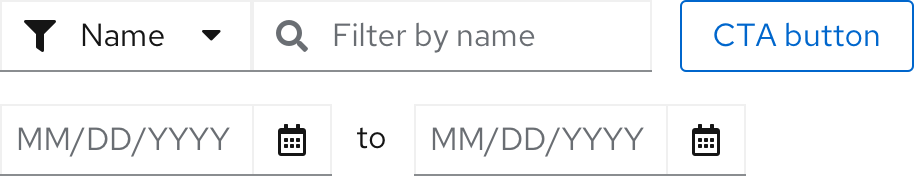

Some use cases may call for a two-lined toolbar. If your toolbar spans two lines, include your dropdown and filters on the top line and your date pickers below.

Example of date picker in toolbar filter group - two liner

For more information about using different types of filters, see our filters guidelines.

Additional dropdown for simplified date-range filtering

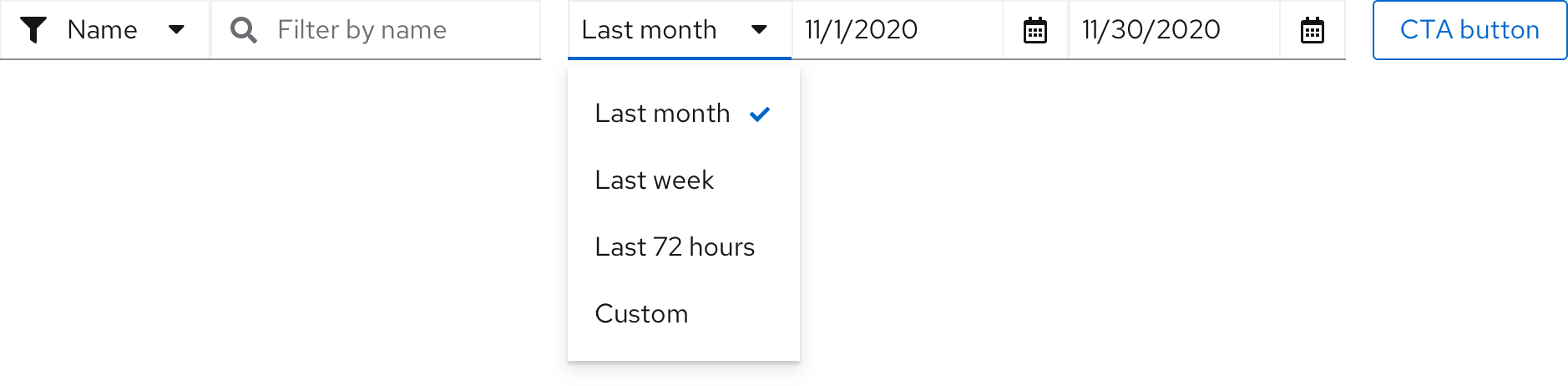

Add an optional dropdown to date-range filters within a toolbar to allow users to filter by the most common date-range options associated with the corresponding table.

Example of date picker in toolbar filter group - two liner

When a user selects an option from this additional dropdown, the date picker automatically populates with the first and last day of their specified range.

Example of date picker in toolbar filter group - two liner

Example: If a user selects Last month from the date-range dropdown, the date picker will display the first day (11/1/2020) and last day (11/30/2020) of that date range.

Once the date picker displays these prefilled values, users can edit each one. Upon customizing the date range, a user’s selected dropdown option will change from Last month to Custom.

Date pickers in a form

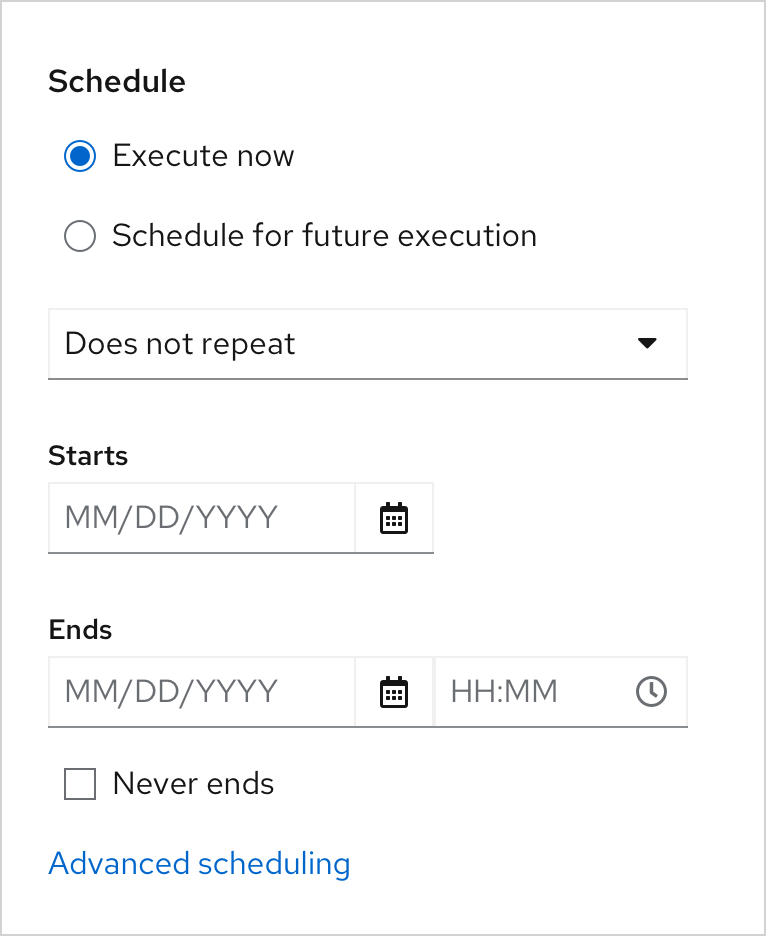

Use a date picker in a form to display basic scheduling options, typically for future events. In some use cases, you may preselect and display the most common date options users can choose from based on your app such as ‘Execute command now’ or ‘Don’t repeat execution’

Example of a date picker in a form - with other elements

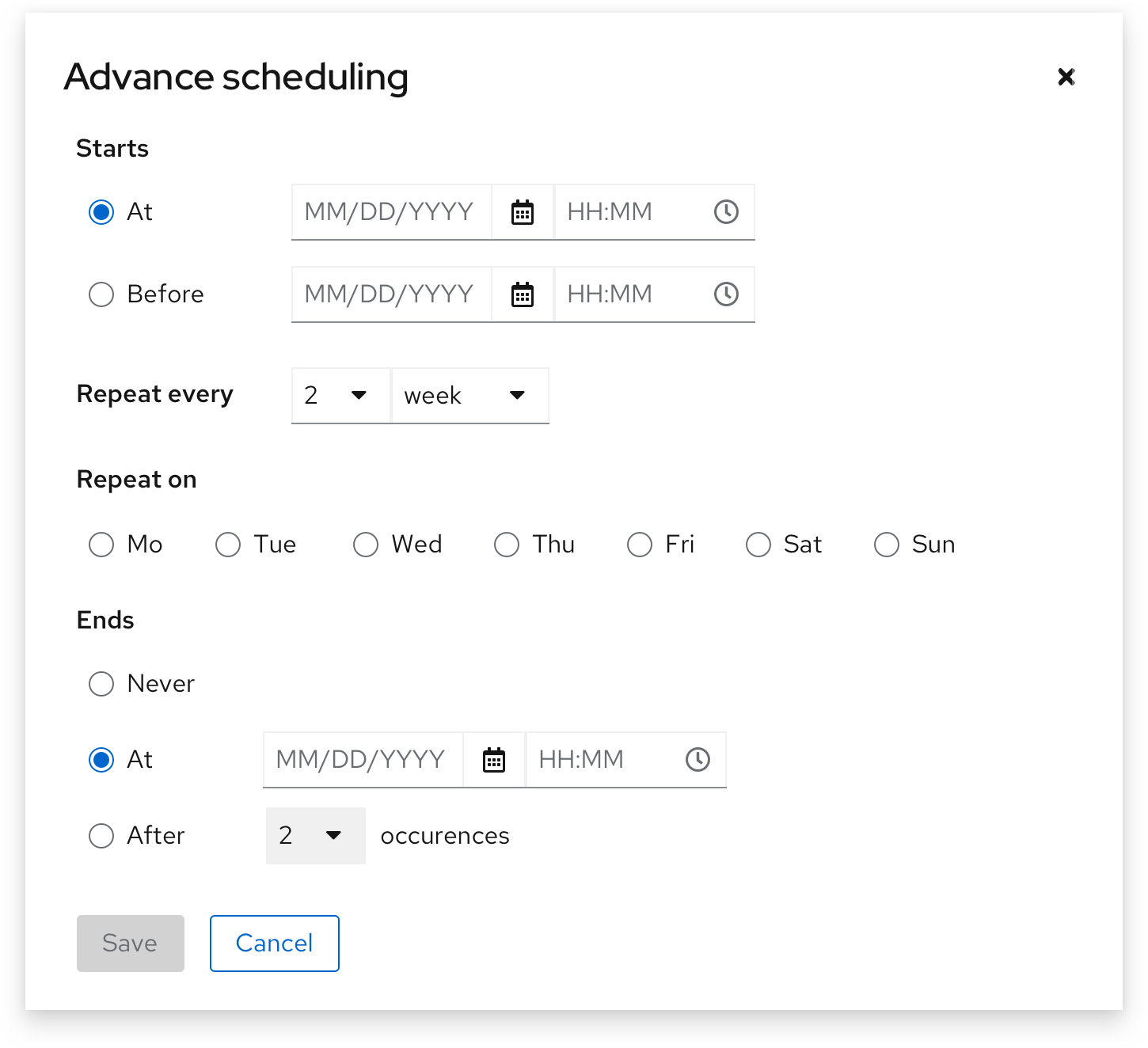

Some use cases will call for more advanced scheduling options, such as scheduling an action to take place at or before a certain date, repeat on a certain day or interval, or end after a certain number of occurrences.

Example of a date picker used with other scheduling options

Content considerations

Date format

Date formats are product-specific and often depend on user locale. To minimize confusion, choose one date format and keep it consistent. If one date picker displays MM/DD/YYYY, be sure to repeat the same date format throughout your interface.

Learn more about recommended date and time conventions in our date and time guidelines.

Placeholder text

Always use placeholder text in date fields to provide an example of the accepted date format. Placeholder text will disappear after users begin inputting their own date.

Example: MM/DD/YYYY

Placeholder text in date picker

For more information about writing effective placeholder text, see our form design guidelines.

Helper text

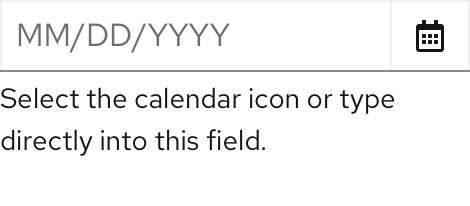

Use helper text to provide permanent guidance below the date field.

Date picker witth helper text

For more information about writing effective placeholder text, see our form design guidelines.

Error message

Use field level error messages to alert users when their inputted date or date format is invalid. Always specify what went wrong so that users can quickly identify the problem and fix it.

Examples:

  • Select a date within valid range.
  • Enter a valid date: MM/DD/YYYY.

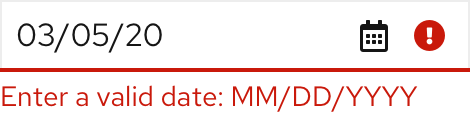

Date picker with error message

For more information about writing effective error messages, see our writing guide.
