Button

A button is an object that communicates and triggers an action when it is clicked or selected.

Usage

There are certain cases where specific buttons must be used within your UI.

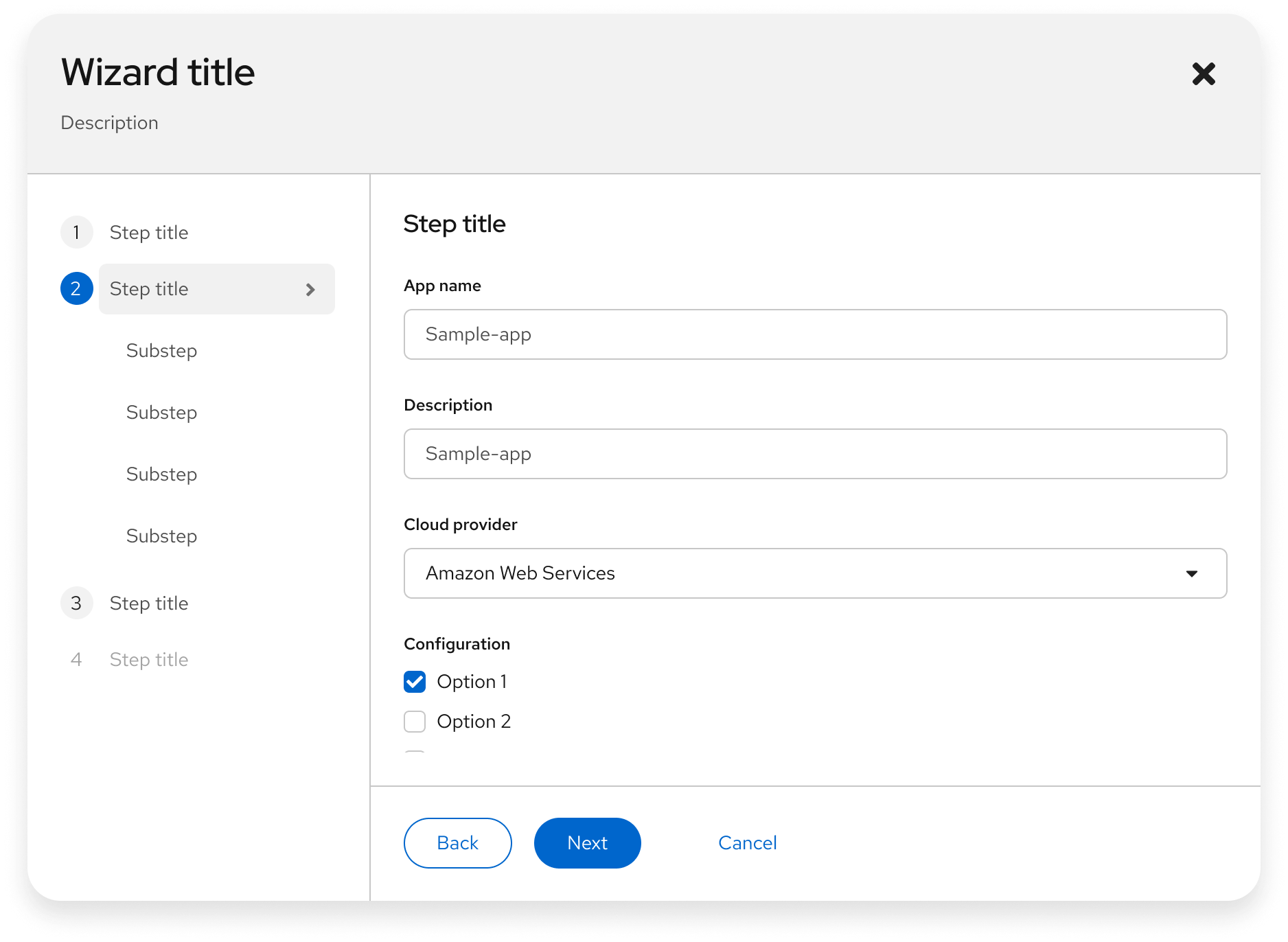

Follow these guidelines for buttons in wizards (shown in the image below):

Example of buttons in a wizard

Variations

The following button styles, shown in order of visual hierarchy, can be used in your designs according to your needs.

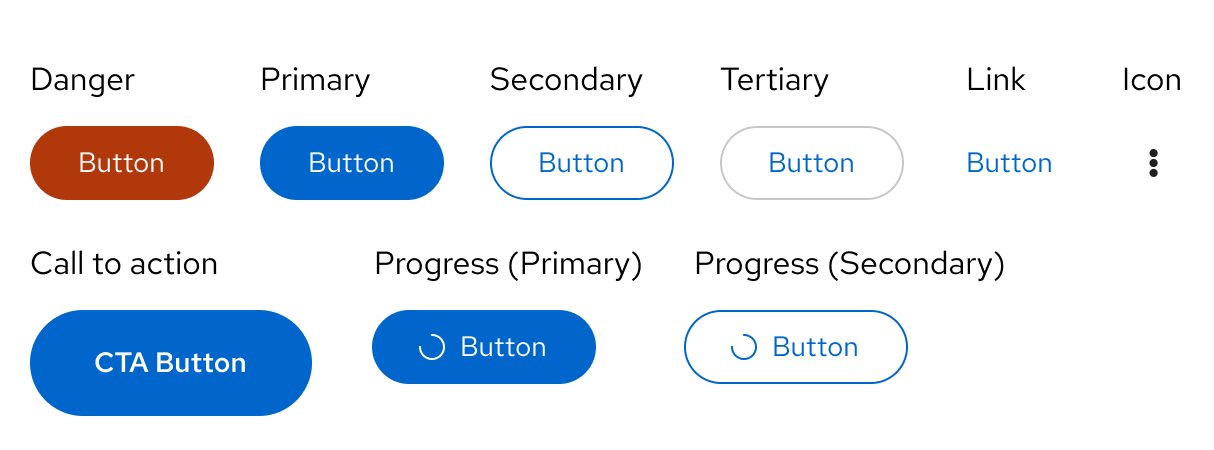

Images of all button types

You don't need to use these buttons in the order that their labels imply. For example, you don't always need to use the secondary button as the second button in your designs. The most important thing is to establish a visual hierarchy between any buttons in your designs. There are, however, some best practices to keep in mind.

Danger button

Danger buttons are the most prominent of all the button options. Use danger buttons for actions a user can take that are potentially destructive or difficult/impossible to undo, like deleting or removing user data. These are mostly found in modals to emphasize a destructive action the user is about to take.

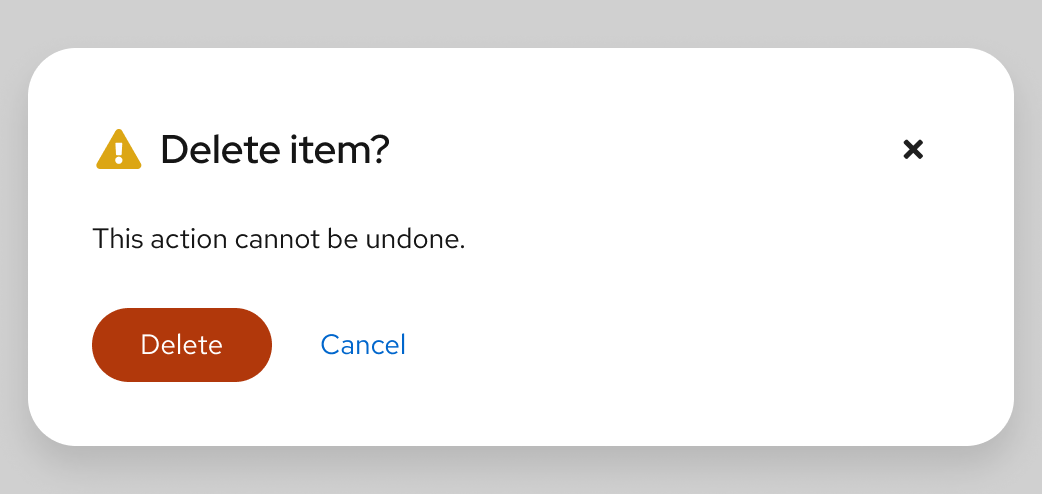

Example of a danger button in a modal

Example of danger button used in a modal

Primary button

A primary button is the most prominent button on a page, used for the most important call to action on a page. Try to limit primary buttons to one per page.

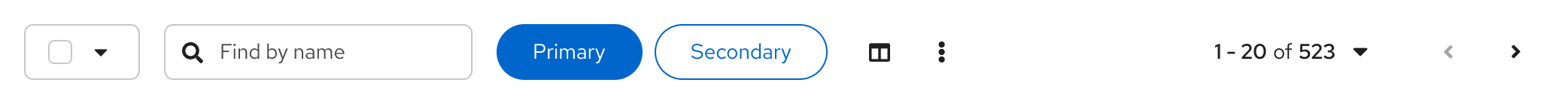

Example of a primary button inside a toolbar

Example of a primary button inside a toolbar

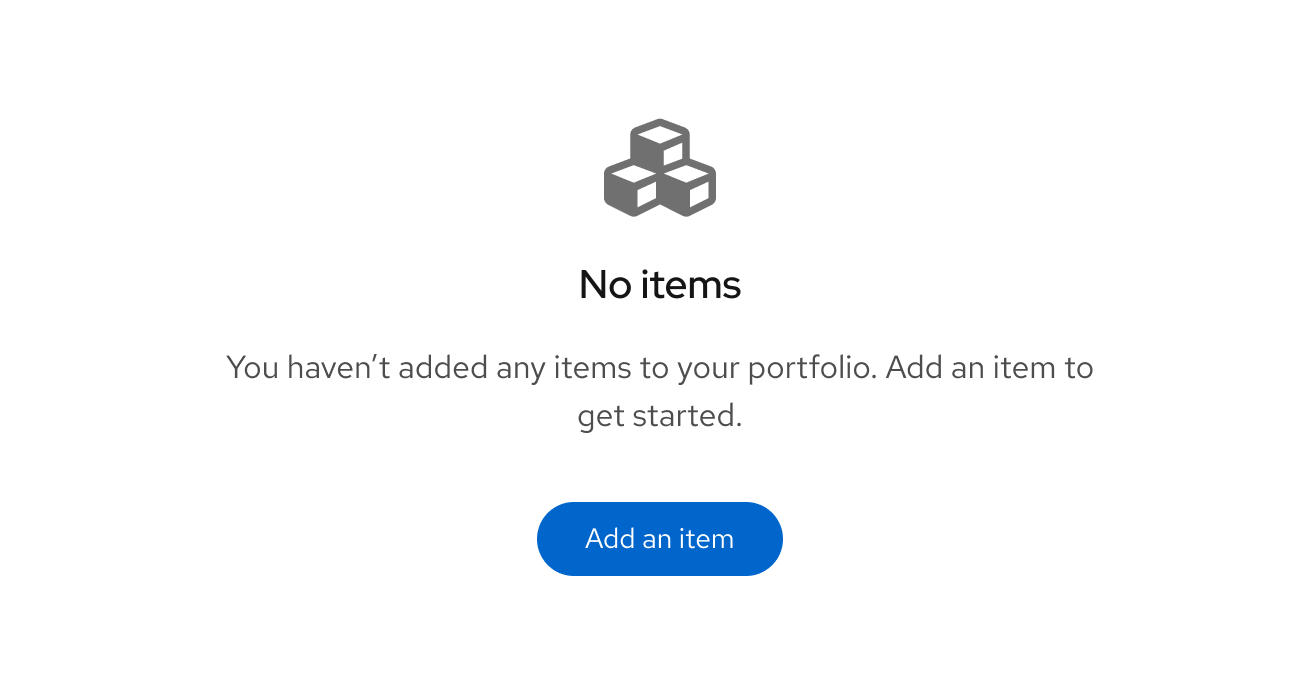

Example of a primary button inside an empty state

Example of a primary button inside an empty state

Secondary button

Secondary buttons are buttons with less visual prominence than primary buttons. Use secondary buttons for general actions on a page, that don’t require as much emphasis as primary button actions. For example, you can use secondary buttons where there are multiple actions, like in toolbars or data lists.

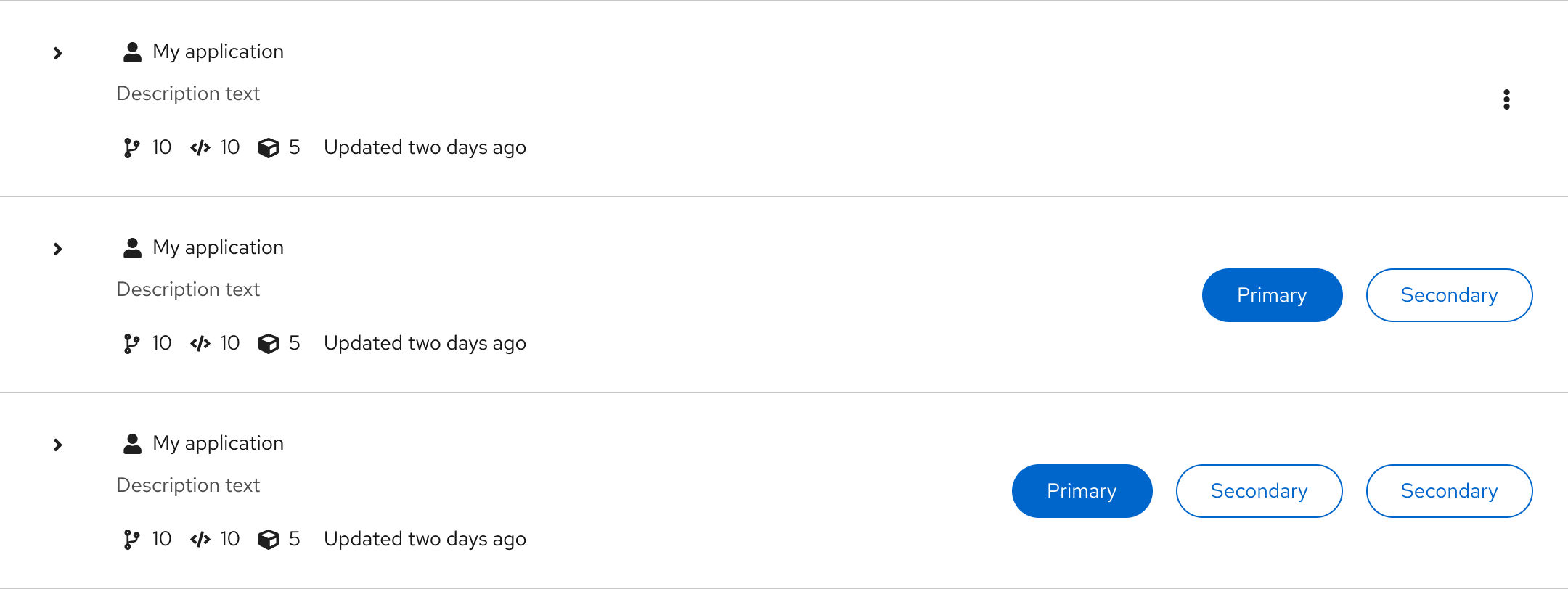

Example of secondary buttons in data lists

Example of secondary buttons in data lists

Tertiary button

Tertiary buttons are one the least visually prominent buttons and are designed to be less striking than a primary or secondary button, while still retaining a classic button format. Tertiary buttons are flexible and can be used as needed.

In this example, you can see a tertiary button used to show a possible “Edit” action. This button format highlights the action, while making it clear that it is not the main call to action on the page.

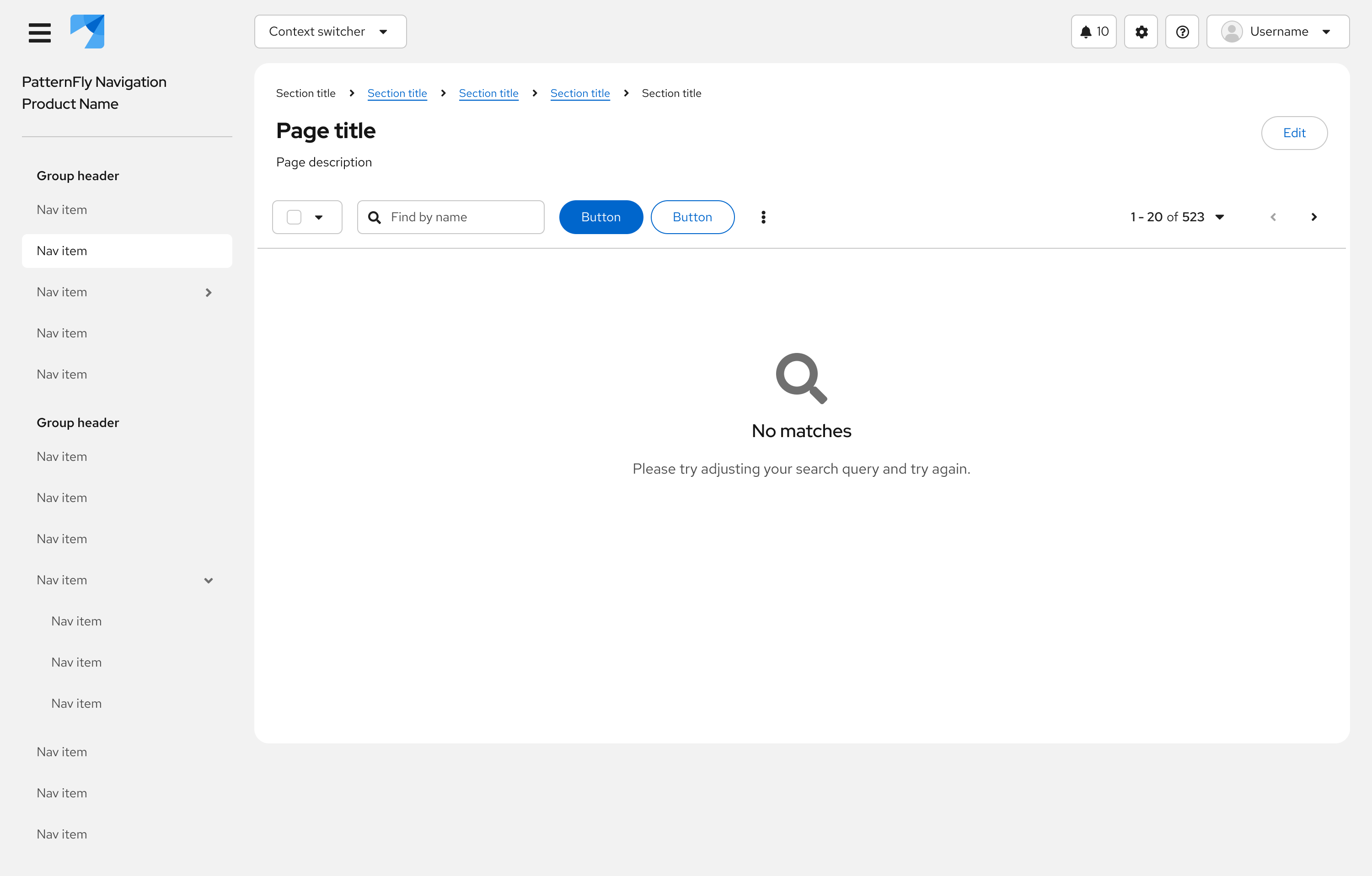

Example of tertiary button on a page

Example of tertiary button on a page

Links buttons are labeled buttons with no background or border. Link buttons can be used for actions that:

  • May not need as much emphasis.
  • Navigate users to another page within the same window.
  • Navigate users to an external page.

While all link buttons lack borders, they can still vary in appearance. Link buttons that navigate users to another page within the same window should be presented as stand-alone text. Link buttons that navigate users to an external page may include an icon on the left or right of the text to further emphasize the action. For example, you could add an external link icon to show that clicking on it will navigate users externally to another website or application.

Example of link button with icon on the leftExample of link button with icon on the right

You might use a link button instead of a secondary button format to create greater visual hierarchy between two buttons. Examples include using text buttons as cancel buttons in modals or wizards, as well as for secondary actions in empty states.

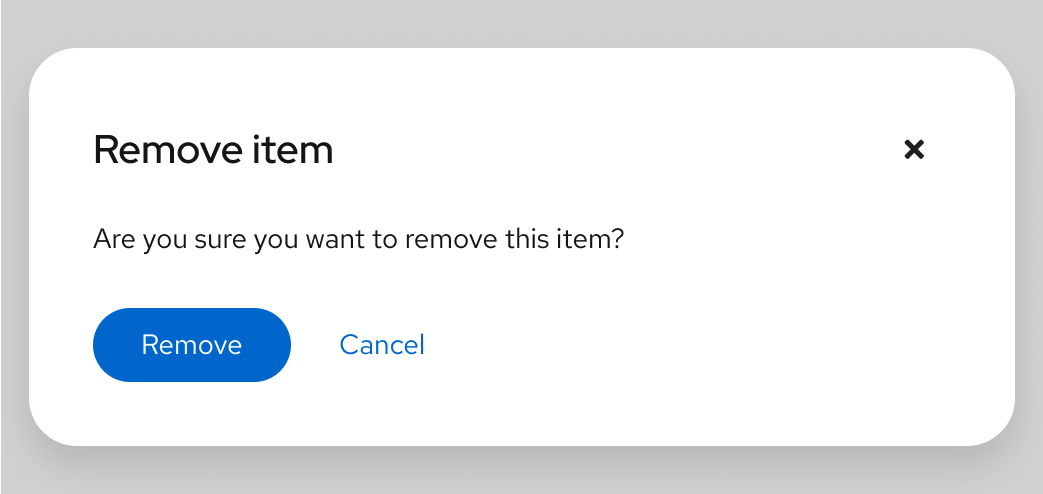

Example of a link button in a modal

Example of a link button in a modal

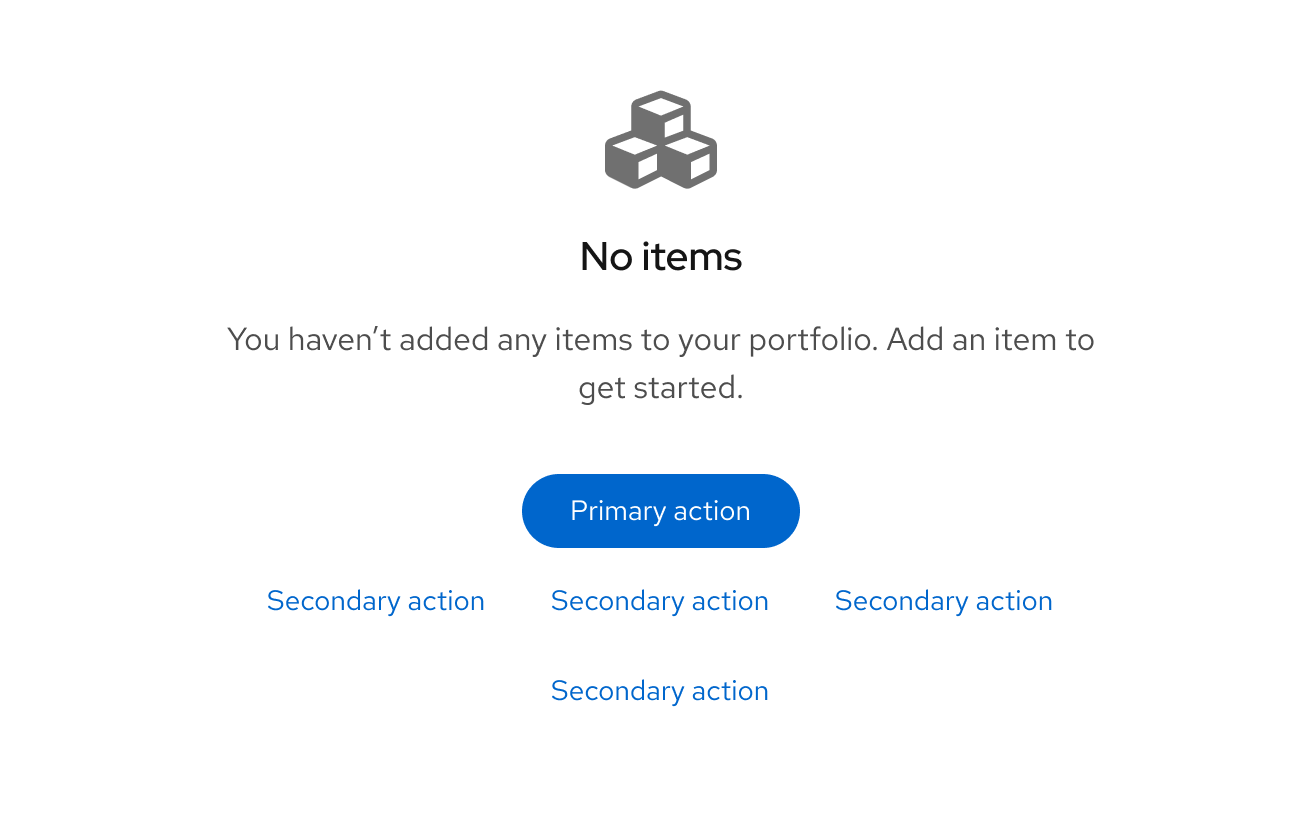

Example of link buttons in an empty state

Example of link buttons in an empty state

When to use

Always use link buttons in the following cases:

  • For cancel buttons in wizards or modals

    Example of link button used in modal
  • For more actions in empty states

    Example of a link button in an empty state
  • For action buttons in tables

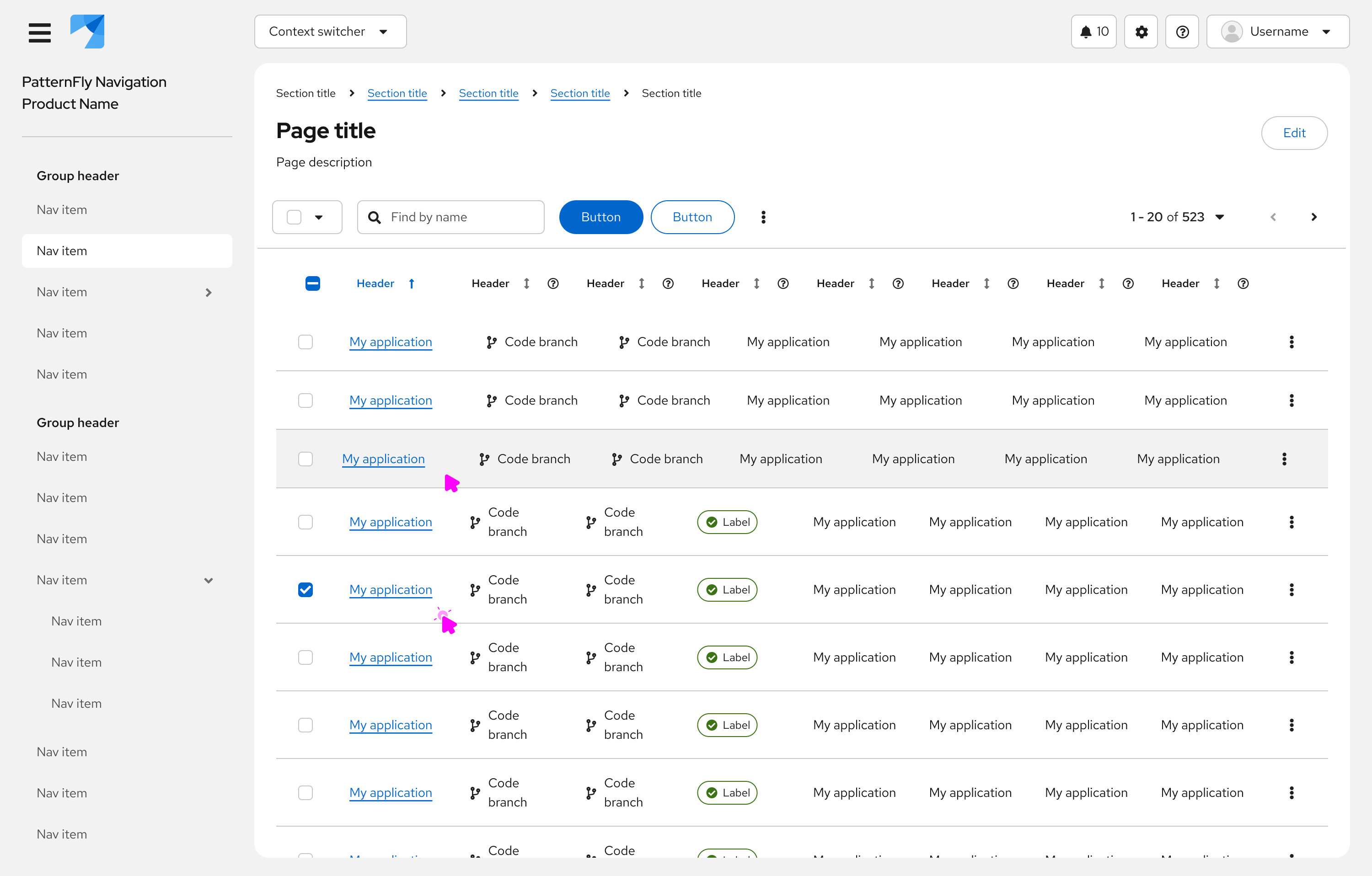

    Example of link buttons in a table
  • For action buttons in alerts

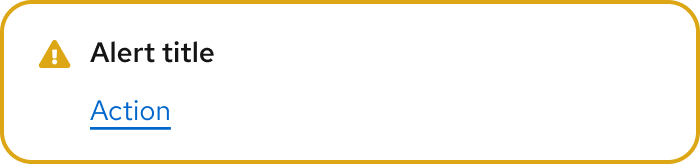

    Example of link button in an alert

Icon button

Icon buttons are useful in places where space is limited. For example, if you have too many actions within a menu, you could use a kebab icon to indicate more actions, or an export icon for exporting data. You can also use this button type for actions that are commonly associated with icons, like an exit icon to close a window or a hamburger icon to open a menu.

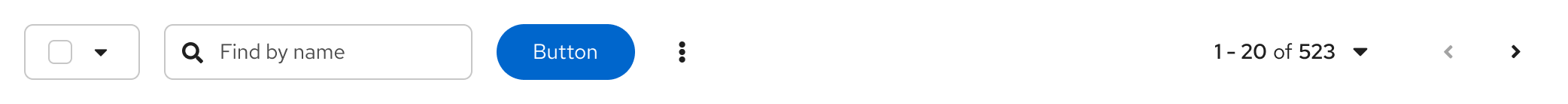

For example, this toolbar uses a kebab icon as an action button due to limited space.

Example of kebab used as an icon button inside a toolbar

Call To Action button

Call To Action (CTA) buttons and links are used on websites to direct users to complete an action. For example, a product detail page could include a CTA button labeled 'Try it now,' which would guide users to a purchase page.

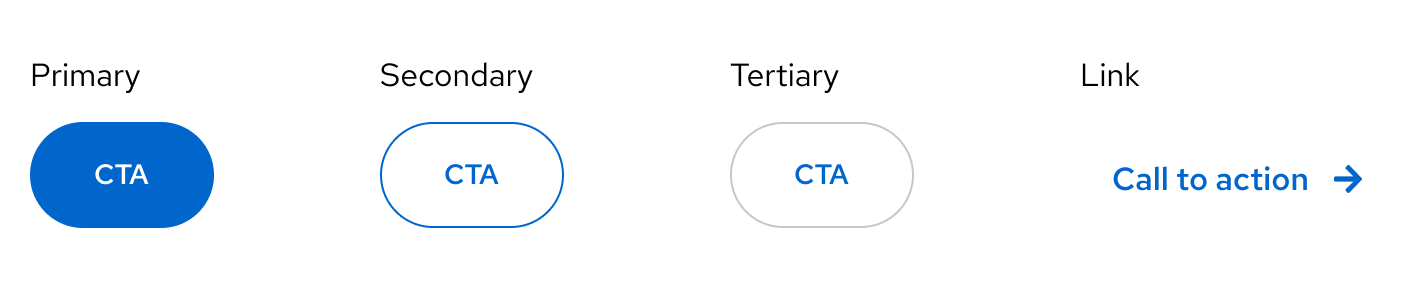

Images of all CTA types

Call To Actions have similar variants to regular buttons (although they have a larger padding), and follow the same visual hierarchy. However, CTA buttons are used only to indicate a desired next step, whereas other button types may also be used to link to additional information or actions. Call To Actions should be used sparingly (ideally one per page, or a primary and secondary CTA).

Progress button

A progress button can be used to provide the user with feedback that an action is in progress after the button is clicked. To indicate that an action is taking place, a spinner is inserted in front of the button label.

When to use a progress button

Use a progress button for in-page checks that must be completed before proceeding to the next screen.

When not to use a progress button

Do not use a progress button for operations that will take more than a few seconds, or operations that open to a new page. Instead, use a progress bar.

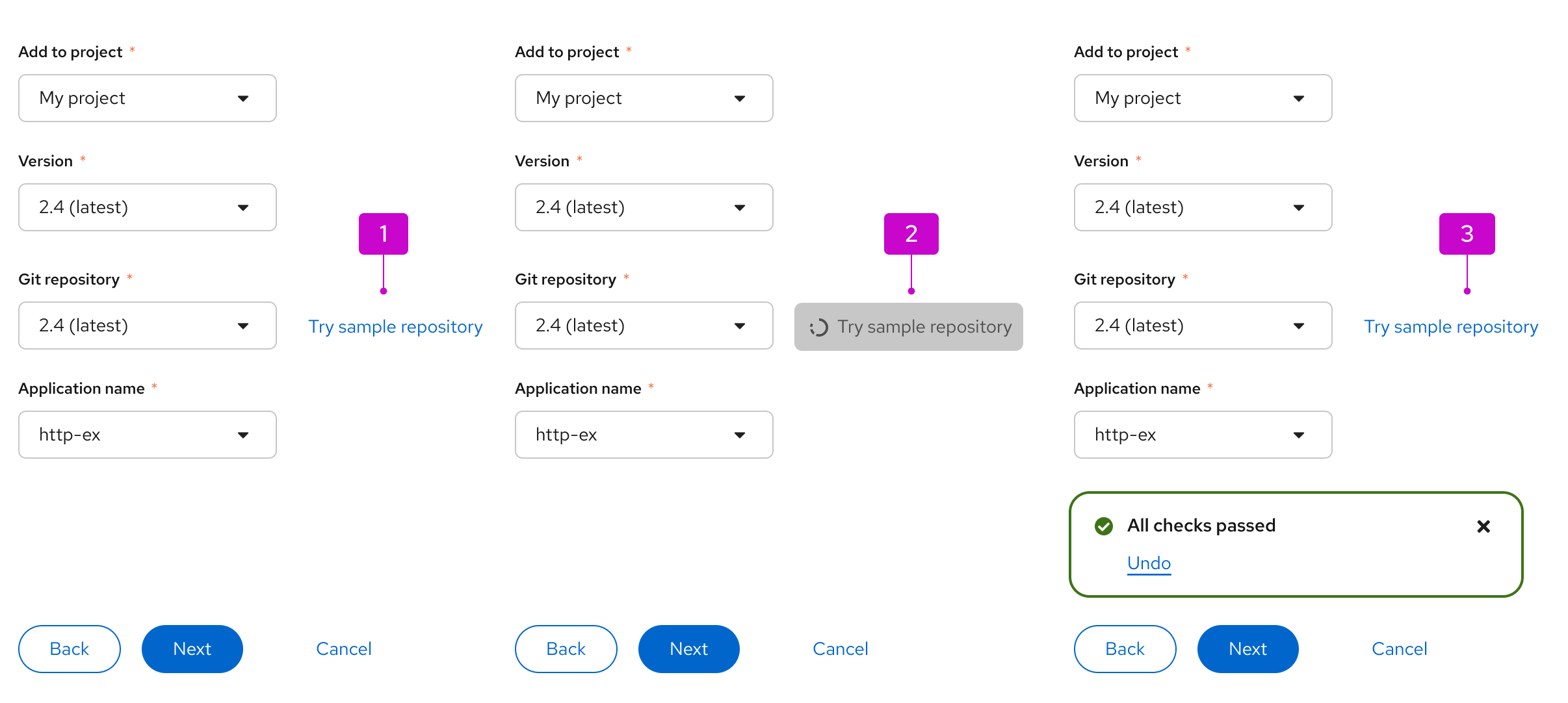

Example of using a progress button to test a repository before final configuration

Example of progress button usage
  1. The user clicks “try sample repository".

  2. The spinner will become disabled, indicating to the user that a process is loading and there is no action to take on the button at this time.

  3. When complete, a toast message will appear to indicate the status of the process (successful or unsuccessful), and the progress button will return to it’s initial state.

Spacing

Button spacing and action lists

The standard spacing between each button is 16px, even for danger buttons. If buttons are stacked vertically, the spacing between each button should be 8px.

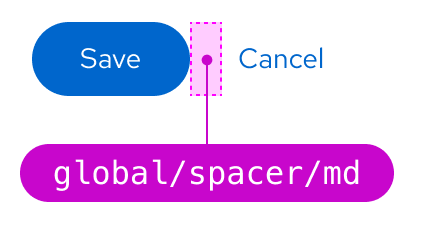

Standard spacing

Standard button spacing with spacers

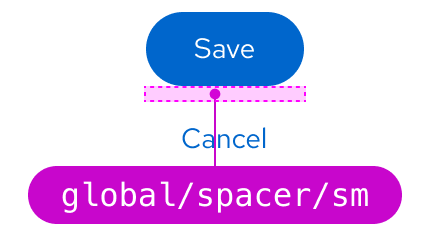

Stacked spacing

Stacked button spacing with spacers

Exceptions

Exceptions to the standard spacing guidelines are as follows:

Wizards

In wizards, the Cancel button is spaced 48px away from the primary and secondary Next and Back buttons, and 24px away if stacked.

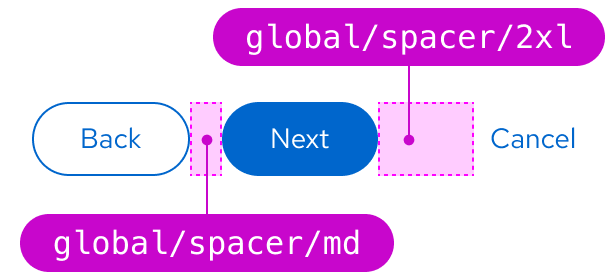

Wizard spacing

Wizard button spacing with spacers

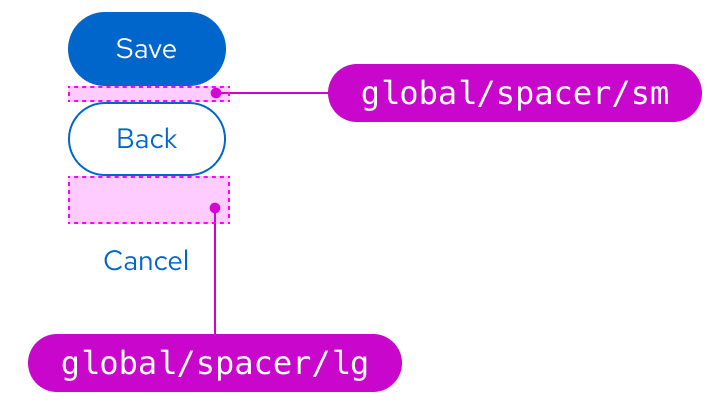

Wizard stacked spacing

Stacked wizard button spacing with spacers

Modals

In modals, the primary button is spaced only 8px away from the secondary button, rather than the standard 16px.

Modal spacing

Modal button spacing with spacers

Toolbars

Button spacing in toolbars depends on the button type. Normal 16px spacing applies between primary and secondary buttons. However, there should only be 8px between icon buttons.

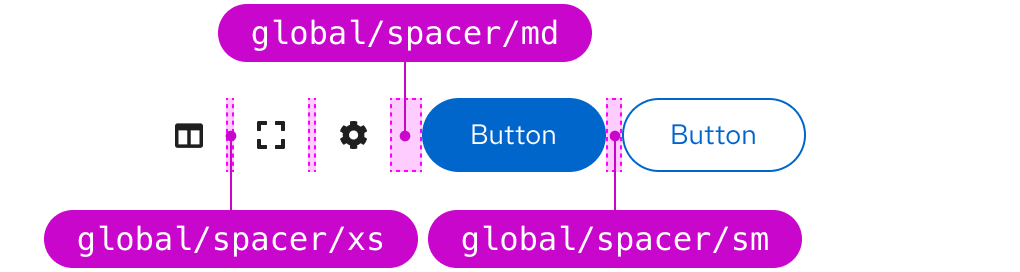

Toolbar spacing

Toolbar button spacing with spacers

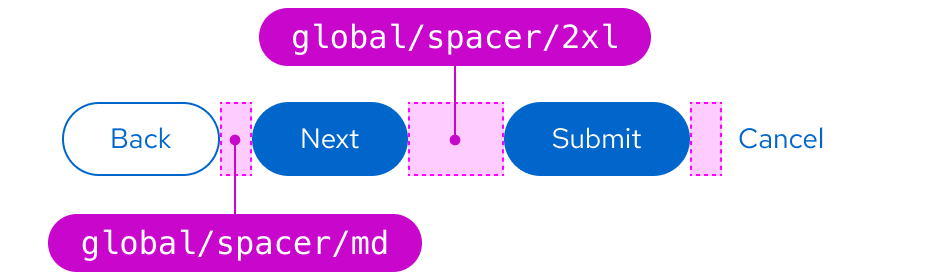

If you have a specific use case where buttons need to be spaced further away from the rest, the button groups action list allows for customization as needed.

Action group spacing

Action group spacing with spacers

Buttons and overflow menus

There are cases where you will have multiple buttons next to each other, like in a toolbar. When the space shrinks (e.g., switching from desktop to mobile view), you can have the buttons collapse into a kebab overflow menu. Additionally, you can choose to make the primary action persist or have all options collapse into the kebab.

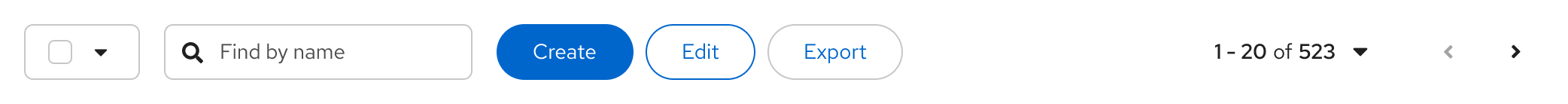

Buttons appear in the toolbar

Pre-over flow menu in toolbar, where all actions appear in the toolbar itself

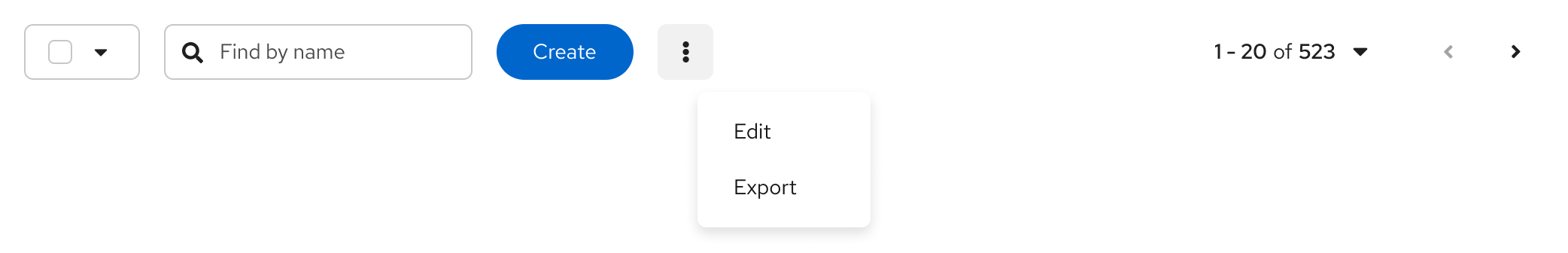

Buttons placed in overflow menu due to limited space, with primary button persisting

Post-overflow menu in toolbar, where toolbar has become smaller in width, prompting an overflow menu for secondary actions, while primary button persists in the toolbar itself

Placement

Buttons in forms, modals, or wizards should always be left aligned in the box. This solves for:

  • Modularity and flexibility: A standard alignment creates consistency in how objects appear across all areas of an app.
  • Accessibility: The form submit buttons are on the same scan line as the form fields, which benefits users who are sight-limited. Also, users who are blind can more easily navigate left-aligned form submit buttons because the button order is consistent across all contexts.
  • Responsiveness: The most important actions (i.e., primary buttons) are encountered first when elements are stacked vertically.

Content considerations

Writing button labels

When writing button labels:

  • Be specific and clearly communicate the button's action.
  • Make sure that button text is unique and easily understood on its own, so that screen readers may read buttons to users out of context. Refer to PatternFly's accessibility guide for more information.
  • Use simple verbs or verb phrases.
  • Aim for short labels when possible (1–3 words), to avoid wrapping.
  • Avoid using articles (for example, write “Add source” instead of “Add a source”).
  • Avoid punctuation on buttons.
  • Add an icon to the button to call a user's attention to it or to clarify the button's action.
  • Do not create icons on buttons using punctuation (for example, "+"). Instead, refer to PatternFly's icons page for any icons you place on buttons.

Use specific, action-focused labels that match what the user will see when they arrive at their location. For example, if you are sending a user to a dashboard, your link label might read View dashboard. For a link directing a user to a support forum, the label might read Get help in the support forum. See PatternFly's content guidelines for additional guidance.

Accessibility

For information regarding accessibility, visit the button accessibility page.
