Popover

A popover is a small overlay window that provides additional information about an on-screen element.

Examples

{{> popover-close}}

Top

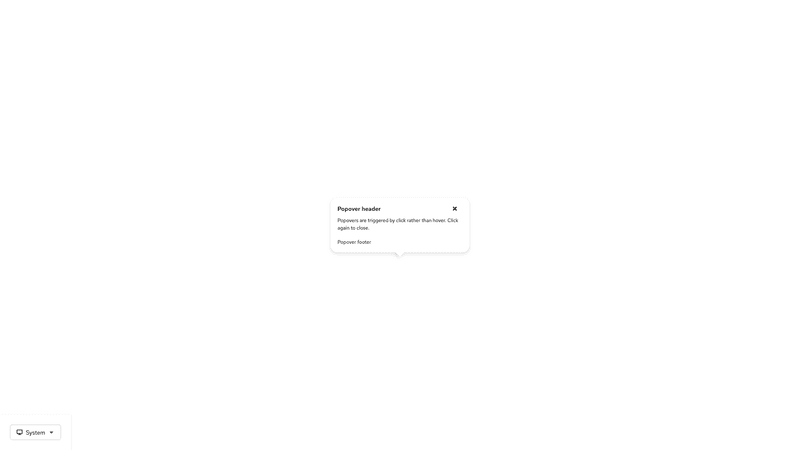

Top screenshot
Right screenshot

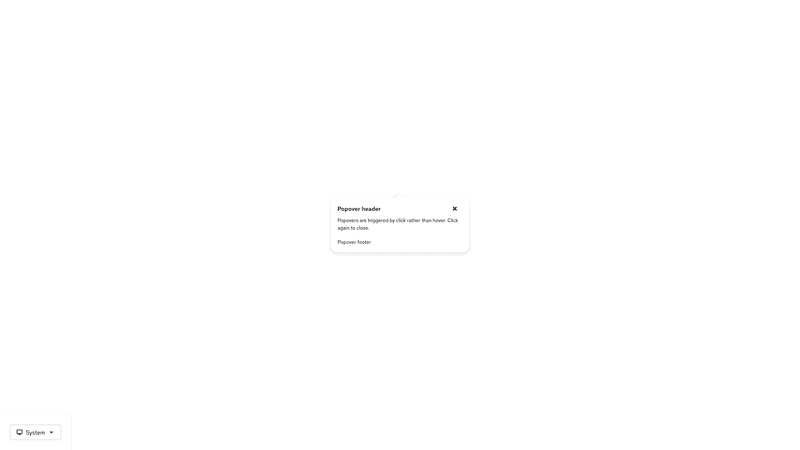

Bottom

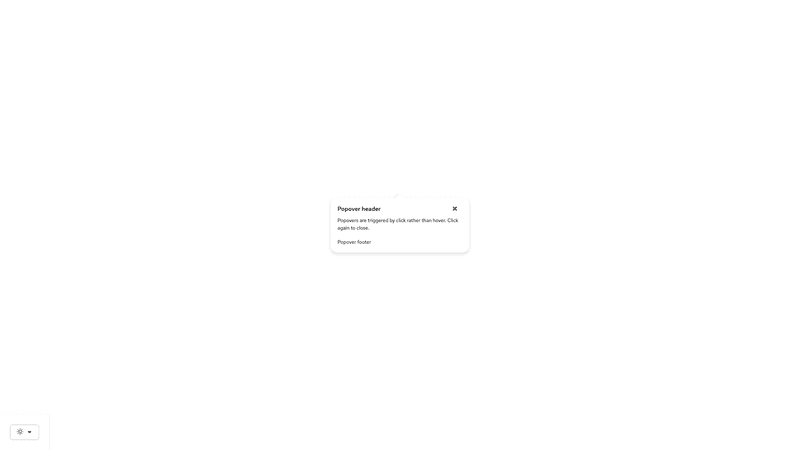

Bottom screenshot

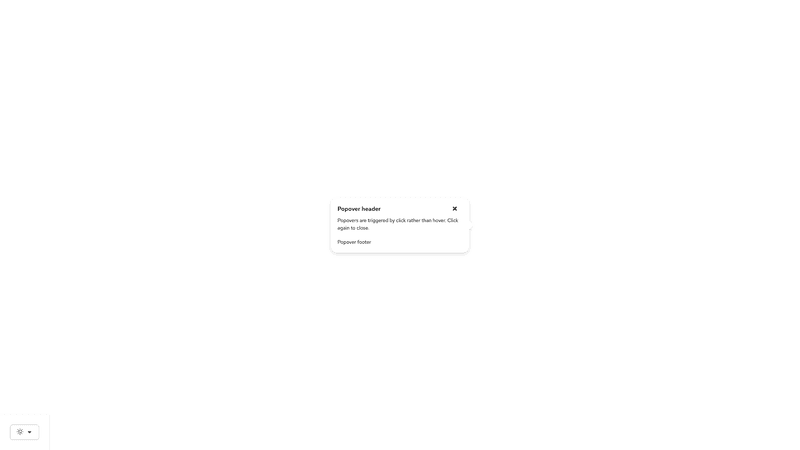

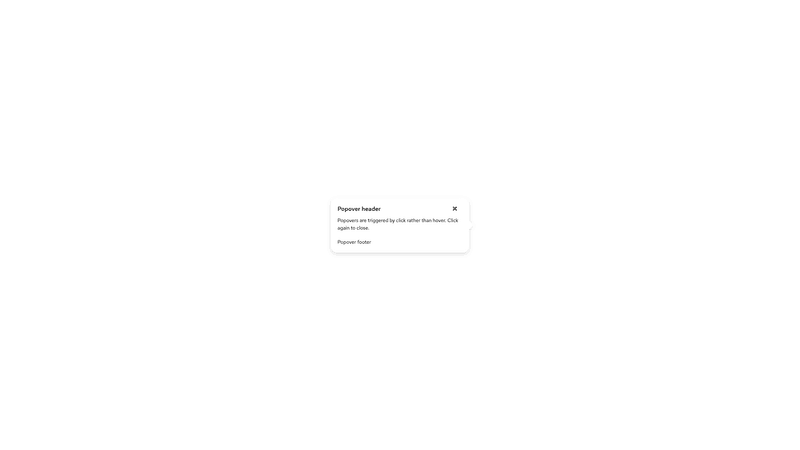

Left

Left screenshot

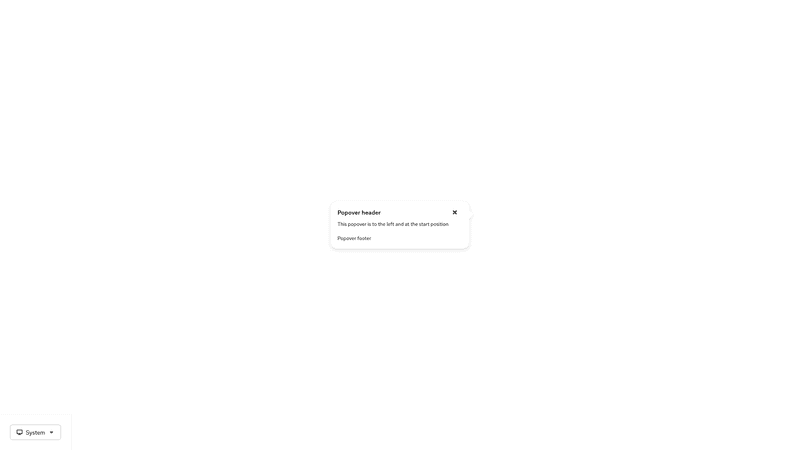

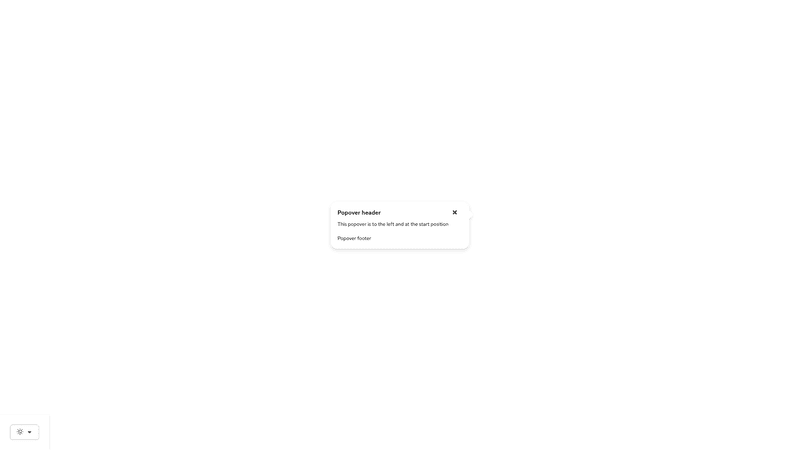

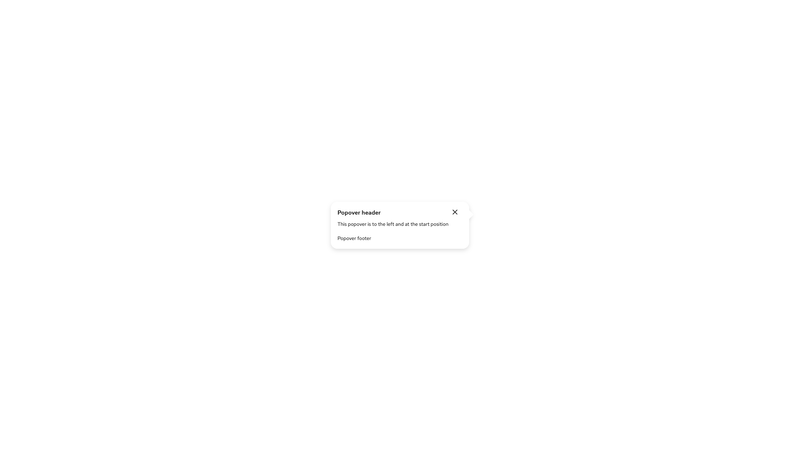

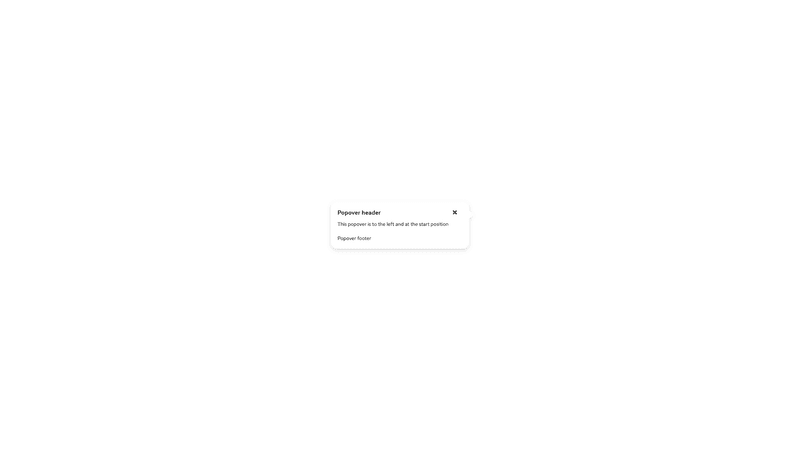

Left top

Left top screenshot

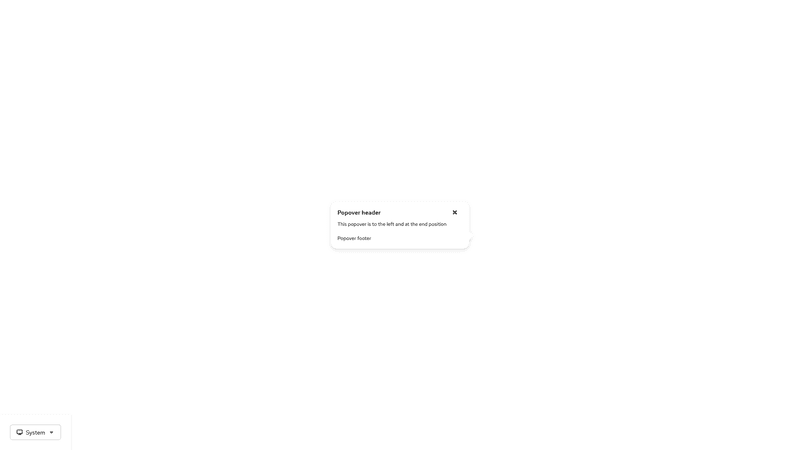

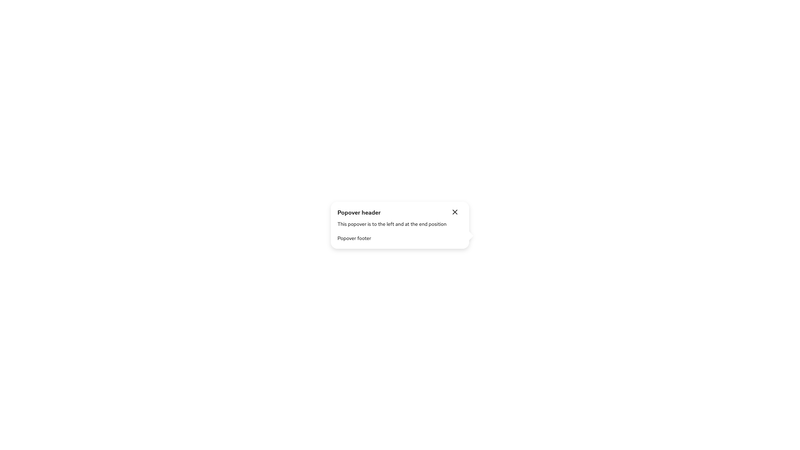

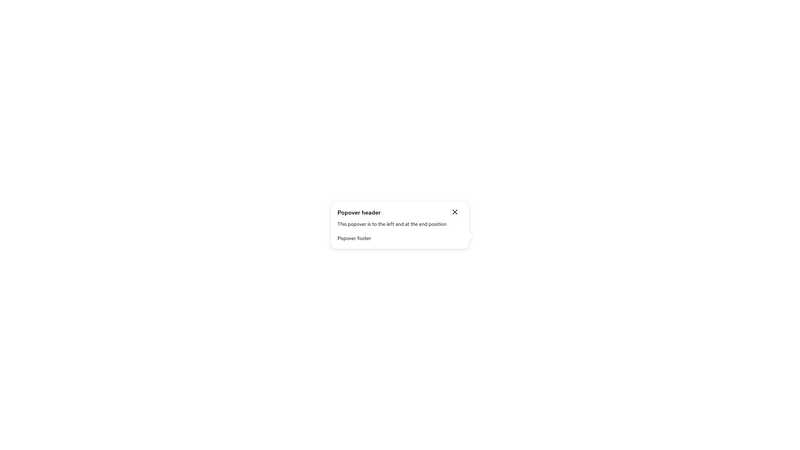

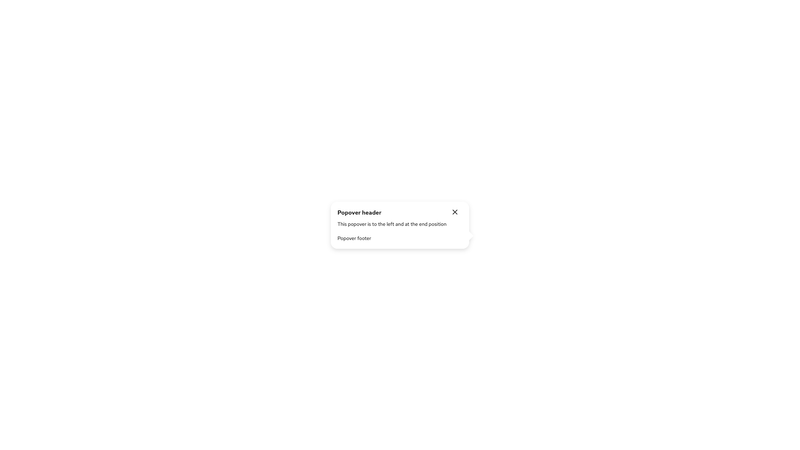

Left bottom

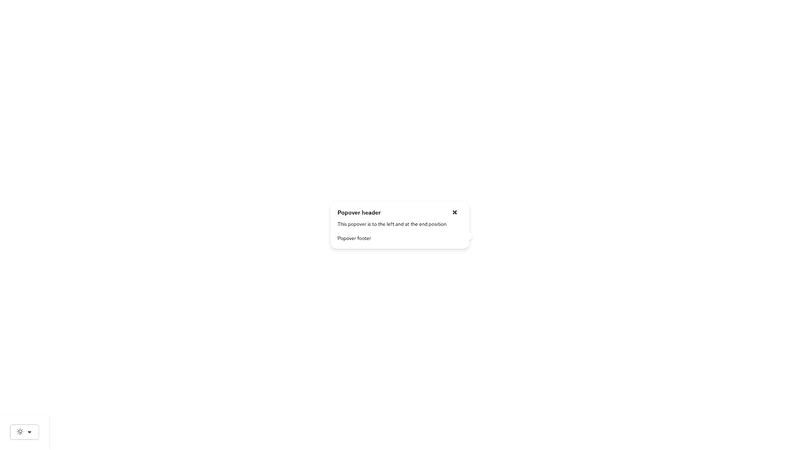

Left bottom screenshot

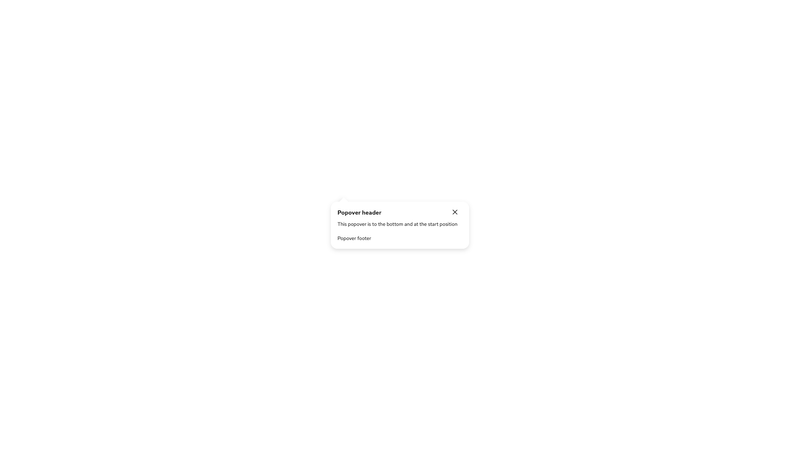

Bottom left

Bottom left screenshot

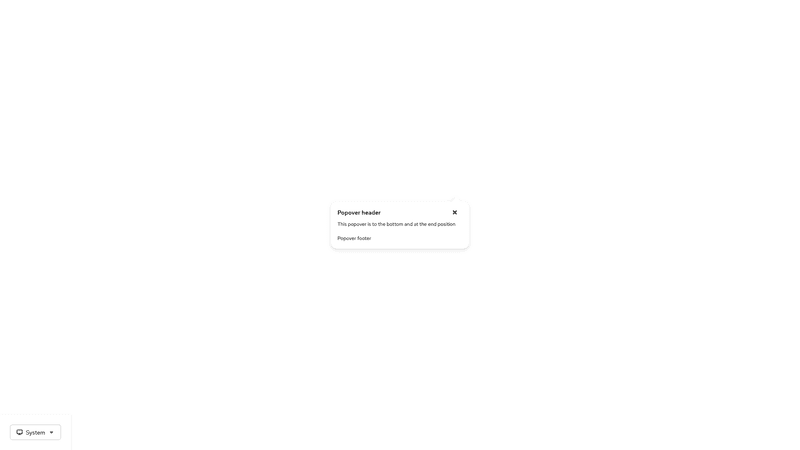

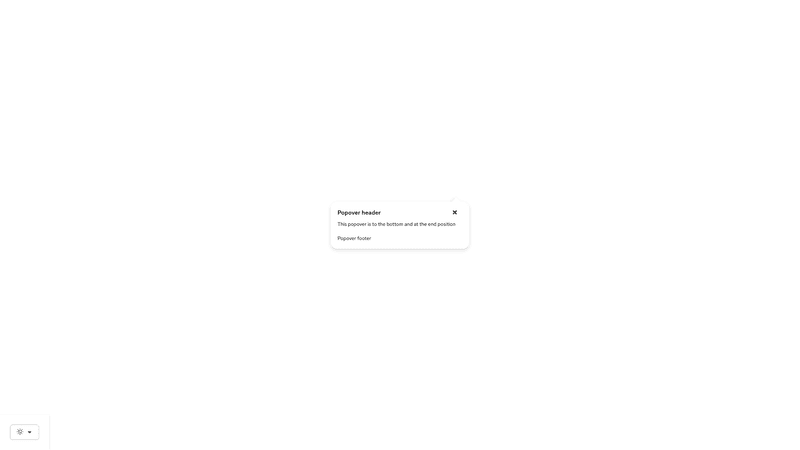

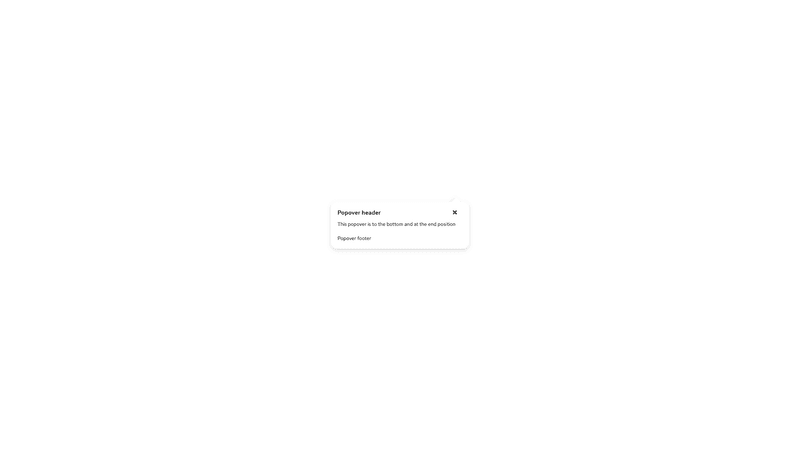

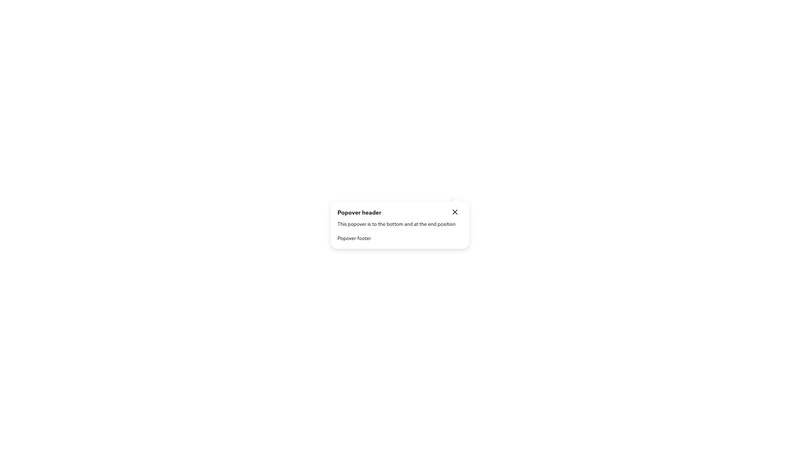

Bottom right

Bottom right screenshot

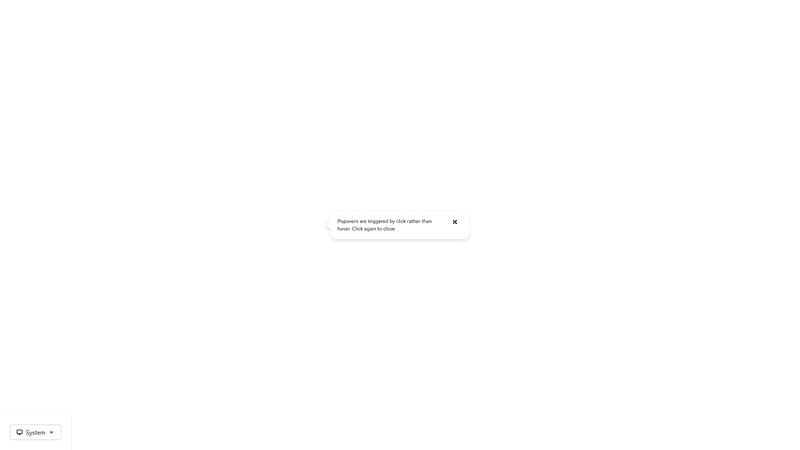

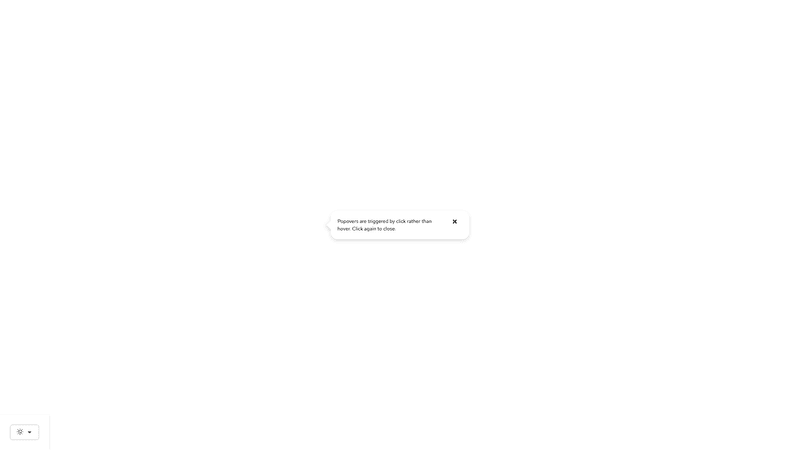

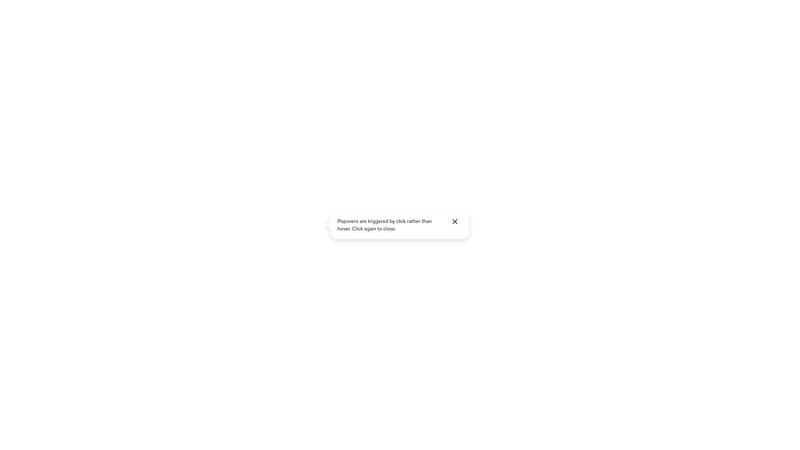

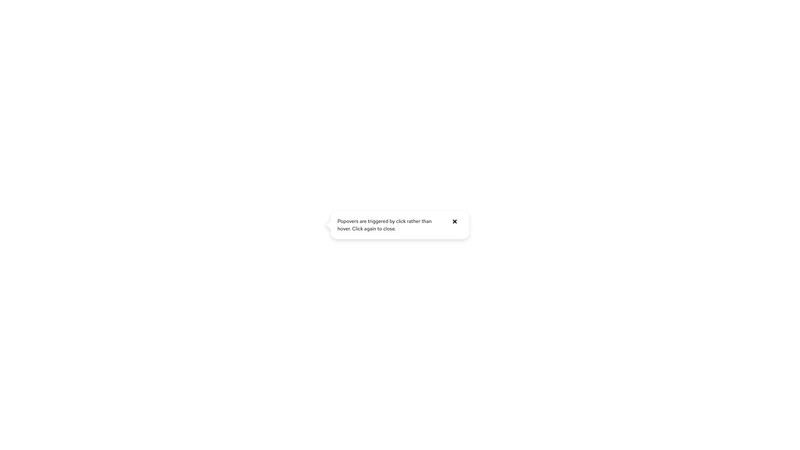

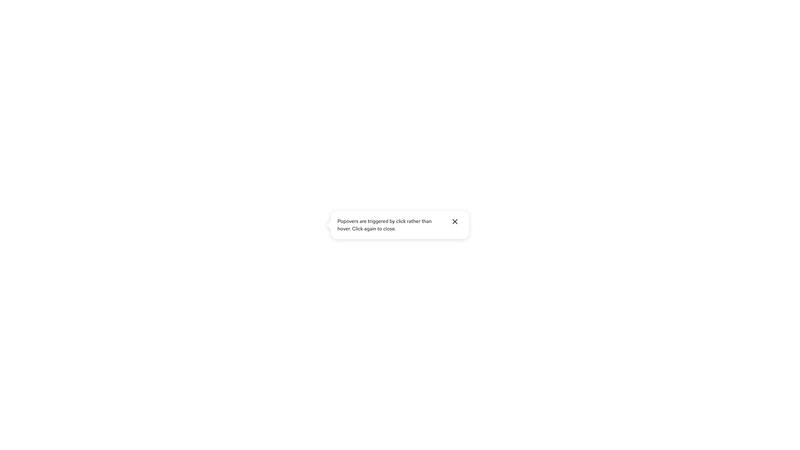

Without header/footer

Without header/footer screenshot

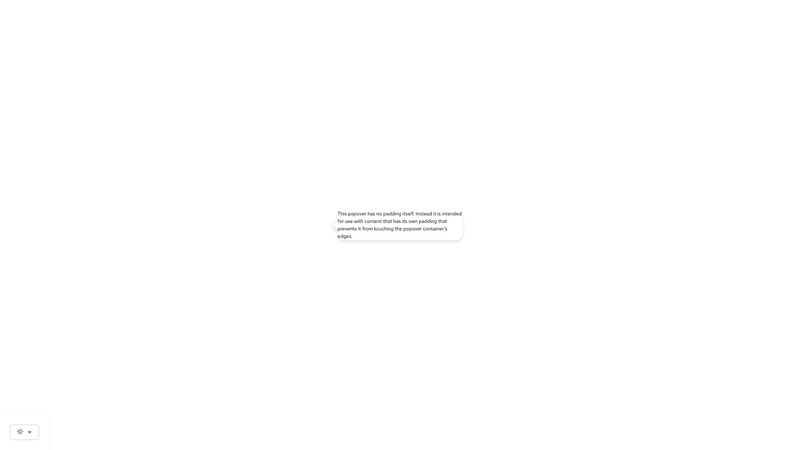

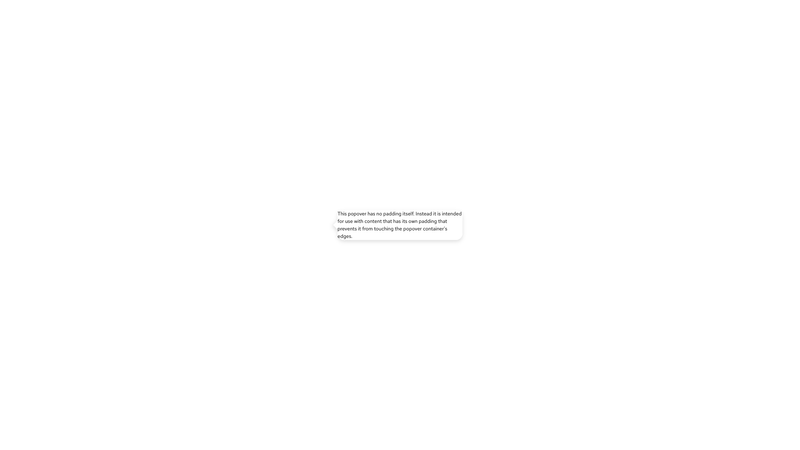

No padding

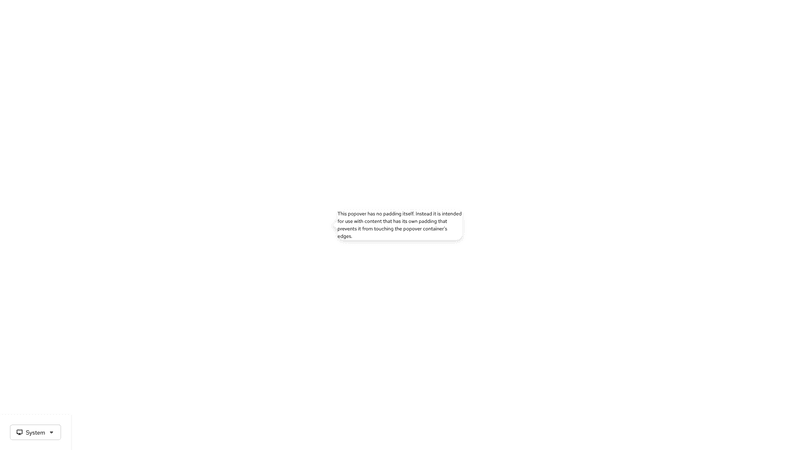

No padding screenshot

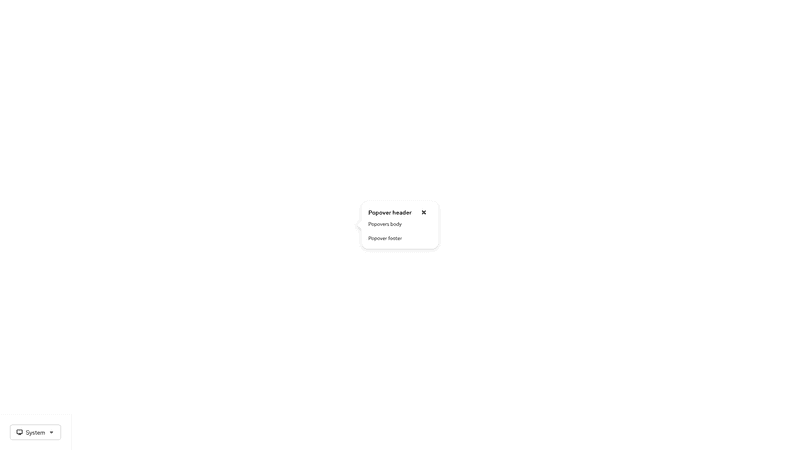

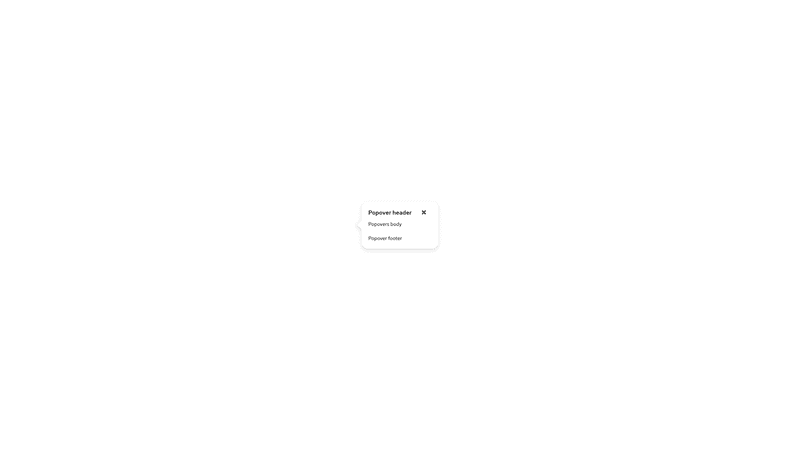

Width auto

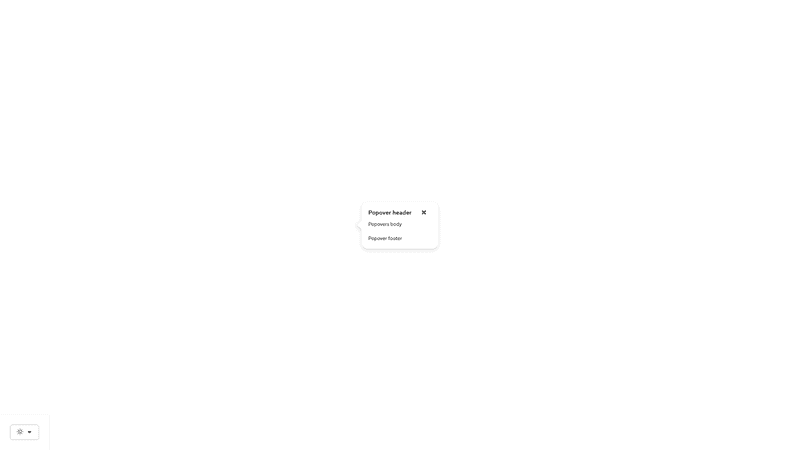

Width auto screenshot

Popover with icon in the title

Popover with icon in the title screenshot

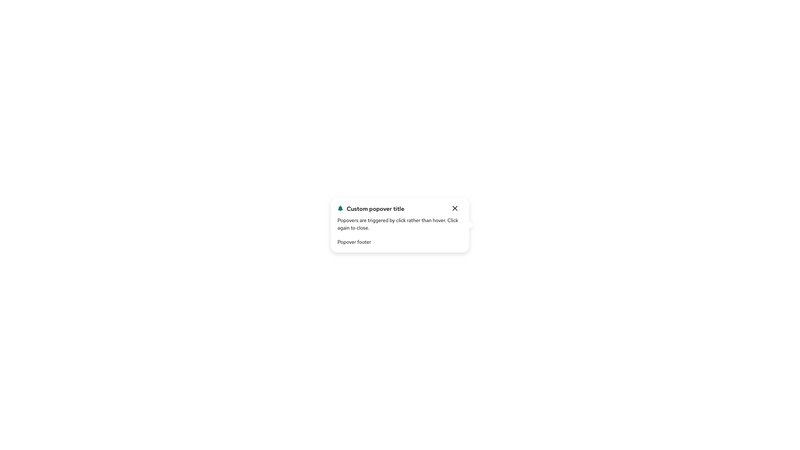

Custom alert popover

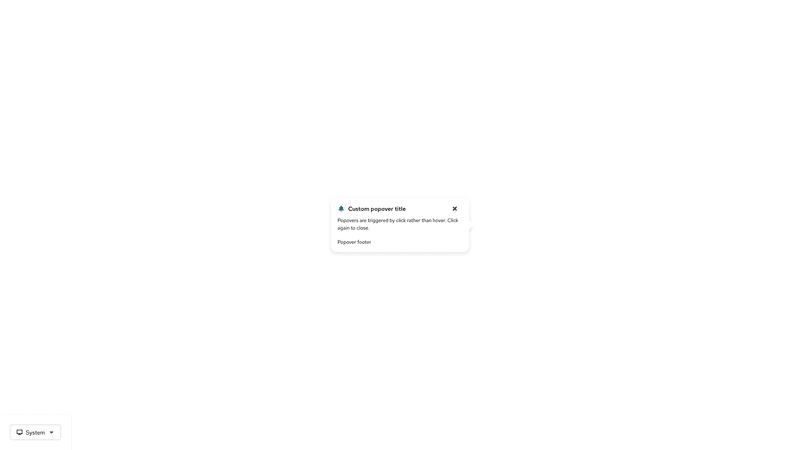

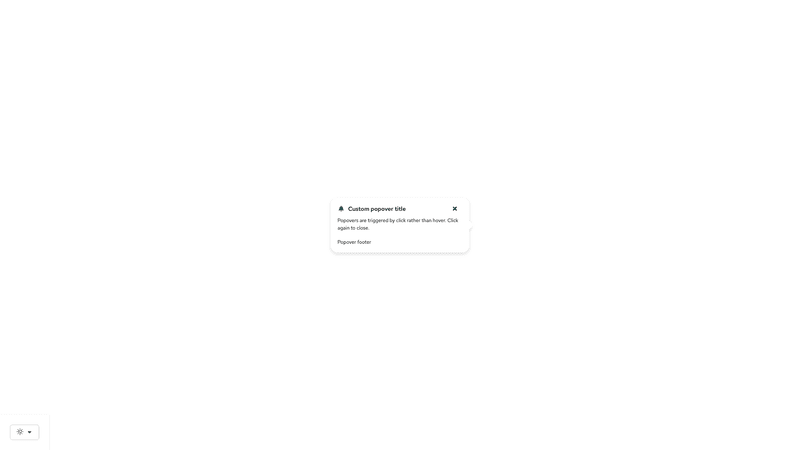

Custom alert popover screenshot

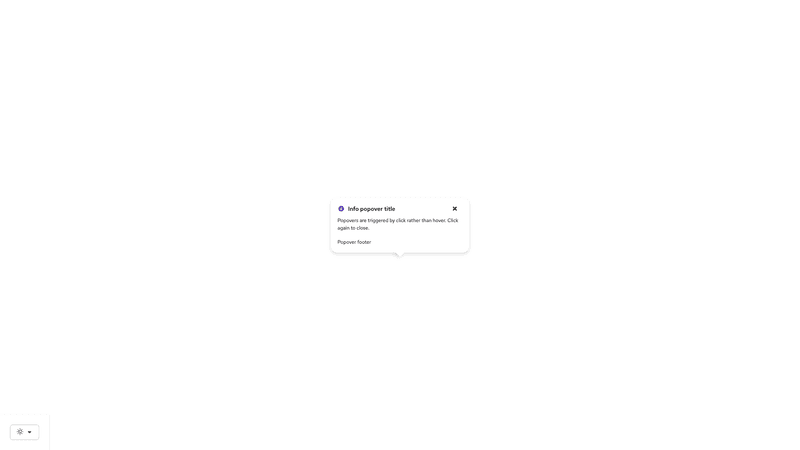

Info alert popover

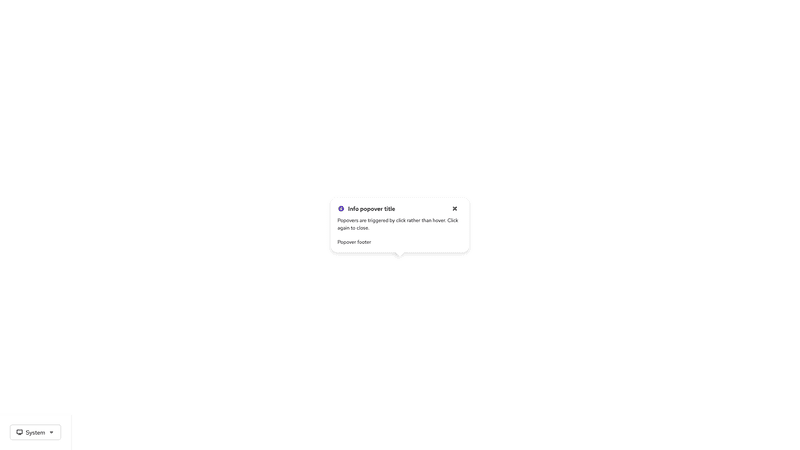

Info alert popover screenshot

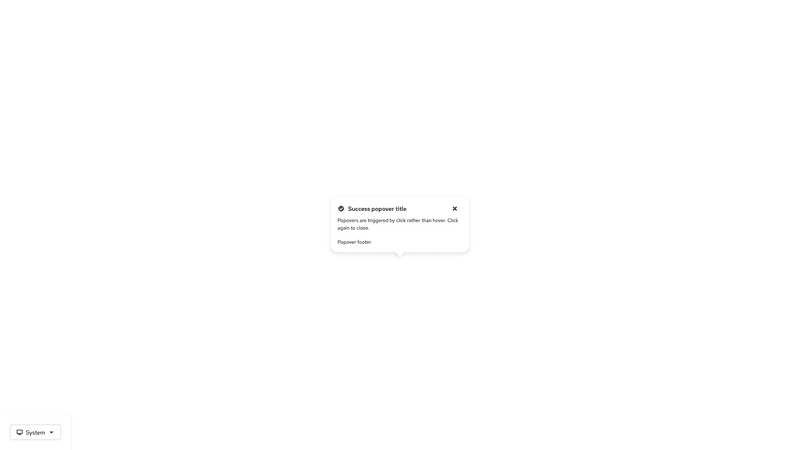

Success alert popover

Success alert popover screenshot

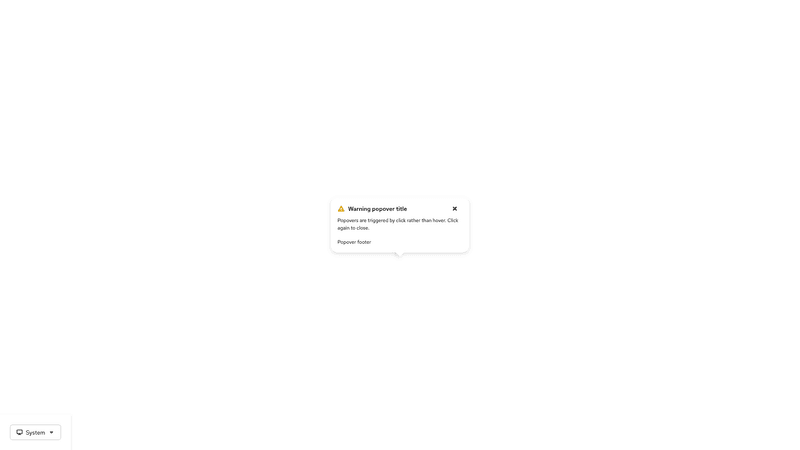

Warning alert popover

Warning alert popover screenshot

Danger alert popover

Danger alert popover screenshot

Documentation

Overview

A popover is used to provide contextual information for another component on click. The popover itself is made up of two main elements: arrow and content. The content element follows the pattern of the popover box component, with a close icon in the top right corner, as well as a header and body. One of the directional modifiers (.pf-m-left, .pf-m-top, etc.) is required on the popover component

Accessibility

Attribute
Applies to
Outcome
role="dialog"
.pf-v6-c-popover
Identifies the element that serves as the popover container. Required
aria-labelledby="[id value of .pf-v6-c-title]"
.pf-v6-c-popover
Gives the popover an accessible name by referring to the element that provides the dialog title. Required when .pf-v6-c-title is present
aria-label="[title of popover]"
.pf-v6-c-popover
Gives the popover an accessible name. Required when .pf-v6-c-title is not present
aria-describedby="[id value of applicable content]"
.pf-v6-c-popover
Gives the popover an accessible description by referring to the popover content that describes the primary message or purpose of the dialog. Not used if there is no static text that describes the popover.
aria-modal="true"
.pf-v6-c-popover
Tells assistive technologies that the windows underneath the current popover are not available for interaction. Required
aria-label="Close"
.pf-v6-c-button
Provides an accessible name for the close button as it uses an icon instead of text. Required
aria-hidden="true"
Parent element containing the page contents when the popover is open.
Hides main contents of the page from screen readers. The element with .pf-v6-c-popover must not be a descendent of the element with aria-hidden="true". For more info, see trapping focus. Required
.pf-v6-screen-reader
.pf-v6-c-popover__title-text <span>
Adds text to be read saying the alert status before the title. If .pf-v6-c-popover__title-text is not used to create a title, this must be added within the title. Required for popovers that are alerts

Usage

Class
Applied to
Outcome
.pf-v6-c-popover
<div>
Creates a popover. Always use it with a modifier class that positions the popover relative to the element that triggered it. Required
.pf-v6-c-popover__arrow
<div>
Creates an arrow pointing towards the element the popover describes. Required
.pf-v6-c-popover__content
<div>
Creates the content area of the popover. Required
.pf-v6-c-popover__close
<div>
Positions the close icon in the top-right corner of the popover. Required if there is a close button
.pf-v6-c-popover__header
<header>
Creates the popover header. Required if there is a title
.pf-v6-c-popover__title
<div>
Creates the popover title.
.pf-v6-c-popover__title-icon
<span>
Creates the popover title icon.
.pf-v6-c-popover__title-text
<h1>,<h2>,<h3>,<h4>,<h5>,<h6>,<span>
Creates the popover title text.
.pf-v6-c-popover__body
<div>
The popover's body text. Required
.pf-v6-c-popover__footer
<footer>
Initiates a popover footer.
.pf-m-left{-top/bottom}
.pf-v6-c-popover
Positions the popover to the left (or left top/left bottom) of the element.
.pf-m-right{-top/bottom}
.pf-v6-c-popover
Positions the popover to the right (or right top/right bottom) of the element.
.pf-m-top{-left/right}
.pf-v6-c-popover
Positions the popover to the top (or top left/top right) of the element.
.pf-m-bottom{-left/right}
.pf-v6-c-popover
Positions the popover to the bottom (or bottom left/bottom right) of the element.
.pf-m-no-padding
.pf-v6-c-popover
Removes the outer padding from the popover content.
.pf-m-width-auto
.pf-v6-c-popover
Allows popover width to be defined by the popover content.
.pf-m-custom
.pf-v6-c-popover
Modifies for the custom alert state.
.pf-m-info
.pf-v6-c-popover
Modifies for the info alert state.
.pf-m-success
.pf-v6-c-popover
Modifies for the success alert state.
.pf-m-warning
.pf-v6-c-popover
Modifies for the warning alert state.
.pf-m-danger
.pf-v6-c-popover
Modifies for the danger alert state.

CSS variables

Expand or collapse columnSelectorVariableValue
.pf-v6-c-popover--pf-v6-c-popover--FontSize
0.75rem
.pf-v6-c-popover--pf-v6-c-popover--MinWidth
calc(1rem + 1rem + 18.75rem)
.pf-v6-c-popover--pf-v6-c-popover--MaxWidth
calc(1rem + 1rem + 18.75rem)
.pf-v6-c-popover--pf-v6-c-popover--BoxShadow
0px 4px 9px 0px rgba(41, 41, 41, 0.1500)
.pf-v6-c-popover--pf-v6-c-popover--BorderRadius
16px
.pf-v6-c-popover--pf-v6-c-popover--m-danger__title-icon--Color
(In light theme) #b1380b
.pf-v6-c-popover--pf-v6-c-popover--m-warning__title-icon--Color
(In light theme) #dca614
.pf-v6-c-popover--pf-v6-c-popover--m-success__title-icon--Color
(In light theme) #3d7317
.pf-v6-c-popover--pf-v6-c-popover--m-info__title-icon--Color
(In light theme) #5e40be
.pf-v6-c-popover--pf-v6-c-popover--m-custom__title-icon--Color
(In light theme) #147878
.pf-v6-c-popover--pf-v6-c-popover__content--BackgroundColor
(In light theme) #ffffff
.pf-v6-c-popover--pf-v6-c-popover__content--PaddingBlockStart
1rem
.pf-v6-c-popover--pf-v6-c-popover__content--PaddingInlineEnd
1rem
.pf-v6-c-popover--pf-v6-c-popover__content--PaddingBlockEnd
1rem
.pf-v6-c-popover--pf-v6-c-popover__content--PaddingInlineStart
1rem
.pf-v6-c-popover--pf-v6-c-popover__content--BorderRadius
16px
.pf-v6-c-popover--pf-v6-c-popover__arrow--Width
0.9375rem
.pf-v6-c-popover--pf-v6-c-popover__arrow--Height
0.9375rem
.pf-v6-c-popover--pf-v6-c-popover__arrow--BoxShadow
0px 4px 9px 0px rgba(41, 41, 41, 0.1500)
.pf-v6-c-popover--pf-v6-c-popover__arrow--BackgroundColor
(In light theme) #ffffff
.pf-v6-c-popover--pf-v6-c-popover__arrow--m-top--TranslateX
-50%
.pf-v6-c-popover--pf-v6-c-popover__arrow--m-top--TranslateY
50%
.pf-v6-c-popover--pf-v6-c-popover__arrow--m-top--Rotate
45deg
.pf-v6-c-popover--pf-v6-c-popover__arrow--m-right--TranslateX
-50%
.pf-v6-c-popover--pf-v6-c-popover__arrow--m-right--TranslateY
-50%
.pf-v6-c-popover--pf-v6-c-popover__arrow--m-right--Rotate
45deg
.pf-v6-c-popover--pf-v6-c-popover__arrow--m-bottom--TranslateX
-50%
.pf-v6-c-popover--pf-v6-c-popover__arrow--m-bottom--TranslateY
-50%
.pf-v6-c-popover--pf-v6-c-popover__arrow--m-bottom--Rotate
45deg
.pf-v6-c-popover--pf-v6-c-popover__arrow--m-left--TranslateX
50%
.pf-v6-c-popover--pf-v6-c-popover__arrow--m-left--TranslateY
-50%
.pf-v6-c-popover--pf-v6-c-popover__arrow--m-left--Rotate
45deg
.pf-v6-c-popover--pf-v6-c-popover__arrow--m-inline-top--InsetBlockStart
16px
.pf-v6-c-popover--pf-v6-c-popover__arrow--m-inline-bottom--InsetBlockEnd
16px
.pf-v6-c-popover--pf-v6-c-popover__arrow--m-block-left--InsetInlineStart
16px
.pf-v6-c-popover--pf-v6-c-popover__arrow--m-block-right--InsetInlineEnd
16px
.pf-v6-c-popover--pf-v6-c-popover__close--InsetBlockStart
calc(1rem - 0.5rem)
.pf-v6-c-popover--pf-v6-c-popover__close--InsetInlineEnd
1rem
.pf-v6-c-popover--pf-v6-c-popover__close--sibling--PaddingInlineEnd
3rem
.pf-v6-c-popover--pf-v6-c-popover__header--MarginBlockEnd
0.5rem
.pf-v6-c-popover--pf-v6-c-popover__title-text--Color
(In light theme) #151515
.pf-v6-c-popover--pf-v6-c-popover__title-text--FontWeight
500
.pf-v6-c-popover--pf-v6-c-popover__title-text--FontSize
0.875rem
.pf-v6-c-popover--pf-v6-c-popover__title-icon--MarginInlineEnd
0.5rem
.pf-v6-c-popover--pf-v6-c-popover__title-icon--Color
(In light theme) #1f1f1f
.pf-v6-c-popover--pf-v6-c-popover__title-icon--FontSize
0.875rem
.pf-v6-c-popover--pf-v6-c-popover__footer--MarginBlockStart
1rem
.pf-v6-c-popover.pf-m-no-padding--pf-v6-c-popover__content--PaddingBlockStart
0px
.pf-v6-c-popover.pf-m-no-padding--pf-v6-c-popover__content--PaddingInlineEnd
0px
.pf-v6-c-popover.pf-m-no-padding--pf-v6-c-popover__content--PaddingBlockEnd
0px
.pf-v6-c-popover.pf-m-no-padding--pf-v6-c-popover__content--PaddingInlineStart
0px
.pf-v6-c-popover.pf-m-width-auto--pf-v6-c-popover--MinWidth
auto
.pf-v6-c-popover.pf-m-width-auto--pf-v6-c-popover--MaxWidth
none
.pf-v6-c-popover:is(.pf-m-top, .pf-m-top-left, .pf-m-top-right)--pf-v6-c-popover__arrow--InsetBlockEnd
undefined, 0
.pf-v6-c-popover:is(.pf-m-top, .pf-m-top-left, .pf-m-top-right)--pf-v6-c-popover__arrow--InsetInlineStart
undefined, 50%
.pf-v6-c-popover:is(.pf-m-top, .pf-m-top-left, .pf-m-top-right)--pf-v6-c-popover__arrow--TranslateX
-50%
.pf-v6-c-popover:is(.pf-m-top, .pf-m-top-left, .pf-m-top-right)--pf-v6-c-popover__arrow--TranslateY
50%
.pf-v6-c-popover:is(.pf-m-top, .pf-m-top-left, .pf-m-top-right)--pf-v6-c-popover__arrow--Rotate
45deg
.pf-v6-c-popover:is(.pf-m-bottom, .pf-m-bottom-left, .pf-m-bottom-right)--pf-v6-c-popover__arrow--InsetBlockStart
undefined, 0
.pf-v6-c-popover:is(.pf-m-bottom, .pf-m-bottom-left, .pf-m-bottom-right)--pf-v6-c-popover__arrow--InsetInlineStart
undefined, 50%
.pf-v6-c-popover:is(.pf-m-bottom, .pf-m-bottom-left, .pf-m-bottom-right)--pf-v6-c-popover__arrow--TranslateX
-50%
.pf-v6-c-popover:is(.pf-m-bottom, .pf-m-bottom-left, .pf-m-bottom-right)--pf-v6-c-popover__arrow--TranslateY
-50%
.pf-v6-c-popover:is(.pf-m-bottom, .pf-m-bottom-left, .pf-m-bottom-right)--pf-v6-c-popover__arrow--Rotate
45deg
.pf-v6-c-popover:is(.pf-m-left, .pf-m-left-top, .pf-m-left-bottom)--pf-v6-c-popover__arrow--InsetBlockStart
undefined, 50%
.pf-v6-c-popover:is(.pf-m-left, .pf-m-left-top, .pf-m-left-bottom)--pf-v6-c-popover__arrow--InsetInlineEnd
undefined, 0
.pf-v6-c-popover:is(.pf-m-left, .pf-m-left-top, .pf-m-left-bottom)--pf-v6-c-popover__arrow--TranslateX
50%
.pf-v6-c-popover:is(.pf-m-left, .pf-m-left-top, .pf-m-left-bottom)--pf-v6-c-popover__arrow--TranslateY
-50%
.pf-v6-c-popover:is(.pf-m-left, .pf-m-left-top, .pf-m-left-bottom)--pf-v6-c-popover__arrow--Rotate
45deg
.pf-v6-c-popover:is(.pf-m-right, .pf-m-right-top, .pf-m-right-bottom)--pf-v6-c-popover__arrow--InsetBlockStart
undefined, 50%
.pf-v6-c-popover:is(.pf-m-right, .pf-m-right-top, .pf-m-right-bottom)--pf-v6-c-popover__arrow--InsetInlineStart
undefined, 0
.pf-v6-c-popover:is(.pf-m-right, .pf-m-right-top, .pf-m-right-bottom)--pf-v6-c-popover__arrow--TranslateX
-50%
.pf-v6-c-popover:is(.pf-m-right, .pf-m-right-top, .pf-m-right-bottom)--pf-v6-c-popover__arrow--TranslateY
-50%
.pf-v6-c-popover:is(.pf-m-right, .pf-m-right-top, .pf-m-right-bottom)--pf-v6-c-popover__arrow--Rotate
45deg
.pf-v6-c-popover:is(.pf-m-left-top, .pf-m-right-top)--pf-v6-c-popover__arrow--InsetBlockStart
16px
.pf-v6-c-popover:is(.pf-m-left-top, .pf-m-right-top)--pf-v6-c-popover__arrow--TranslateY
50%
.pf-v6-c-popover:is(.pf-m-left-bottom, .pf-m-right-bottom)--pf-v6-c-popover__arrow--InsetBlockStart
auto
.pf-v6-c-popover:is(.pf-m-left-bottom, .pf-m-right-bottom)--pf-v6-c-popover__arrow--InsetBlockEnd
16px
.pf-v6-c-popover:is(.pf-m-top-left, .pf-m-bottom-left)--pf-v6-c-popover__arrow--InsetInlineStart
16px
.pf-v6-c-popover:is(.pf-m-top-left, .pf-m-bottom-left)--pf-v6-c-popover__arrow--TranslateX
50%
.pf-v6-c-popover:is(.pf-m-top-right, .pf-m-bottom-right)--pf-v6-c-popover__arrow--InsetInlineEnd
16px
.pf-v6-c-popover:is(.pf-m-top-right, .pf-m-bottom-right)--pf-v6-c-popover__arrow--InsetInlineStart
auto
.pf-v6-c-popover.pf-m-danger--pf-v6-c-popover__title-icon--Color
(In light theme) #b1380b
.pf-v6-c-popover.pf-m-warning--pf-v6-c-popover__title-icon--Color
(In light theme) #dca614
.pf-v6-c-popover.pf-m-success--pf-v6-c-popover__title-icon--Color
(In light theme) #3d7317
.pf-v6-c-popover.pf-m-custom--pf-v6-c-popover__title-icon--Color
(In light theme) #147878
.pf-v6-c-popover.pf-m-info--pf-v6-c-popover__title-icon--Color
(In light theme) #5e40be
